• A BTP global account If you are an SAP Developer or SAP employee, please refer to the following links ( for internal SAP stakeholders only ) - How to create a BTP Account (internal) SAP AI Core If you are an external developer or a customer or a partner kindly refer to this tutorial
• You have knowledge on connecting code to AI workflows of SAP AI Core.
• You have created your first pipeline with SAP AI Core, using this tutorial.

• How to create placeholders for datasets in your code and associated AI workflow.
• How to register datasets stored in AWS S3 to SAP AI Core.
• How to use datasets with placeholders.
• How to generate models and store them in AWS S3 for later use.

By the end of the tutorial you will have two models trained on two different datasets of house price data. It is possible to change the names of components and file paths mentioned in this tutorial, without breaking the functionality, unless stated explicitly.

IMPORTANT Before you start this tutorial with SAP AI Launchpad, it is recommended that you set up at least one other tool, either Postman or Python (SAP AI Core SDK) because some steps of this tutorial cannot be performed with SAP AI Launchpad.

Please Note : In order to execute this tutorial you have to upgrade to Standard Plan from Free Tier of AI Core.

If you have run the first two tutorials

1.Quick Start Your first AI project using SAP AI Core

2.Build a house Price predictor with SAP AI Core

Using SAP AI Core Free Tier then you have fulfilled all your quota for execution with the free tier. If you have run the execution once then you cannot run any more executions.

As the Tutorials will need you to run multiple executions, hence you need to upgrade your AI Core Plan from free tier to Standard as shown in the successive steps in the tutorial.

Please find downloadable sample notebooks for the tutorials : . Note that these tutorials are for demonstration purposes only and should not be used in production environments. To execute them properly, you'll need to set up your own S3 bucket or provision services from BTP, including an AI Core with a standard plan for narrow AI and an extended plan for GenAI HUB. Ensure you input the service keys of these services into the relevant cells of the notebook. Link to notebook

Create a new directory named hello-aicore-data. The code is different from previous tutorial as it reads the data from folder (volumes, virtual storage spaces). The content of these volumes is dynamically loaded during execution of workflows.

Create a file named main.py, and paste the following snippet there:

import os
#
# Variables
DATA_PATH = '/app/data/train.csv'
DT_MAX_DEPTH= int(os.getenv('DT_MAX_DEPTH'))
MODEL_PATH = '/app/model/model.pkl'
#
# Load Datasets
import pandas as pd
df = pd.read_csv(DATA_PATH)
X = df.drop('target', axis=1)
y = df['target']
#
# Partition into Train and test dataset
from sklearn.model_selection import train_test_split
train_x, test_x, train_y, test_y = train_test_split(X, y, test_size=0.3)
#
# Init model
from sklearn.tree import DecisionTreeRegressor
clf = DecisionTreeRegressor(max_depth=DT_MAX_DEPTH)
#
# Train model
clf.fit(train_x, train_y)
#
# Test model
test_r2_score = clf.score(test_x, test_y)
# Output will be available in logs of SAP AI Core.
# Not the ideal way of storing /reporting metrics in SAP AI Core, but that is not the focus this tutorial
print(f"Test Data Score {test_r2_score}")
#
# Save model
import pickle
pickle.dump(clf, open(MODEL_PATH, 'wb'))

Your code reads the data file train.csv from the location /app/data, which will be prepared in a later step. It also reads the variable (hyper-parameter) DT_MAX_DEPTH from the environment variables later. When generated, your model will be stored in the location /app/model/ . You will also learn how to transport this code from SAP AI Core to your own cloud storage.

Recommendation: Although the dataset file train.csv is not present, it will be dynamically copied during execution to the volume mentioned in (/app/data). Its recommended to pass the filename (train.csv) through the environment variable to your code so that if your dataset filename changes, you can dynamically set the dataset file.

Create file requirements.txt as shown below. Here, if you don't specify a particular version, as shown for pandas, then the latest version of the package will be fetched automatically.

scikit-learn
pandas

Create a file called Dockerfile with following contents.

This filename cannot be amended, and does not have a .filetype

# Specify which base layers (default dependencies) to use
# You may find more base layers at https://hub.docker.com/
FROM python:3.7
#
# Creates directory within your Docker image
RUN mkdir -p /app/src/
# Don't place anything in below folders yet, just create them
RUN mkdir -p /app/data/
RUN mkdir -p /app/model/
#
# Copies file from your Local system TO path in Docker image
COPY main.py /app/src/
COPY requirements.txt /app/src/
#
# Installs dependencies within you Docker image
RUN pip3 install -r /app/src/requirements.txt
#
# Enable permission to execute anything inside the folder app
RUN chgrp -R 65534 /app && \
    chmod -R 777 /app

IMPORTANT Your Dockerfile creates empty folders to store your datasets and models (/app/data and /app/model/ in the example above). Contents from cloud storage will be copied to and from these folders later. Any contents in these folders will be overwritten by the Docker image build.

Build and upload your Docker image to Docker repository, using the following code in the terminal.

docker build -t docker.io/<YOUR_DOCKER_USERNAME>/house-price:03 .
docker push docker.io/<YOUR_DOCKER_USERNAME>/house-price:03

Create a pipeline (YAML file) named house-price-train.yaml in your GitHub repository. Use the existing GitHub path which is already synced by your application of SAP AI Core.

apiVersion: argoproj.io/v1alpha1
kind: WorkflowTemplate
metadata:
  name: data-pipeline # executable id, must be unique across all your workflows (YAML files)
  annotations:
    scenarios.ai.sap.com/description: "Learning how to ingest data to workflows"
    scenarios.ai.sap.com/name: "House Price (Tutorial)" # Scenario name should be the use case
    executables.ai.sap.com/description: "Train with live data"
    executables.ai.sap.com/name: "training" # Executable name should describe the workflow in the use case
    artifacts.ai.sap.com/housedataset.kind: "dataset" # Helps in suggesting the kind of inputs that can be attached.
  labels:
    scenarios.ai.sap.com/id: "learning-datalines"
    ai.sap.com/version: "1.0"
spec:
  imagePullSecrets:
    - name: credstutorialrepo # your docker registry secret
  entrypoint: mypipeline
  templates:
  - name: mypipeline
    steps:
    - - name: mypredictor
        template: mycodeblock1
  - name: mycodeblock1
    inputs:
      artifacts:  # placeholder for cloud storage attachements
        - name: housedataset # a name for the placeholder
          path: /app/data/ # where to copy in the Dataset in the Docker image
    container:
      image: docker.io/<YOUR_DOCKER_USERNAME>/house-price:03 # Your docker image name
      command: ["/bin/sh", "-c"]
      env:
        - name: DT_MAX_DEPTH # name of the environment variable inside Docker container
          value: "3" # will make it as variable later
      args:
        - "python /app/src/main.py"

This change to your workflow creates a placeholder through which you can specify a data path (volume) to the container (Docker image in execution).

1. A placeholder named housedataset is created.
2. You specify the kind of artifact that the placeholder can accept. Artifact is covered in details later in this tutorial.
3. You use a placeholder to specify the path that you created in your Dockerfile, which is where you will copy files to your Docker image.

SAP AI Core only uses your workflows as an interface, so is unaware of the volume/ attachments specified in your Docker image. Your data path is specified in your Dockerfile and has a placeholder in your workflow and data is then expected by the Docker image.

In your workflow, you have used the variable DT_MAX_DEPTH to incorporate a static value from the corresponding environment variable. Let's make this a variable in the workflow.

Replace the contents of the above AI workflow with this snippet.

apiVersion: argoproj.io/v1alpha1
kind: WorkflowTemplate
metadata:
  name: data-pipeline # executable id, must be unique across all your workflows (YAML files)
  annotations:
    scenarios.ai.sap.com/description: "Learning how to ingest data to workflows"
    scenarios.ai.sap.com/name: "House Price (Tutorial)" # Scenario name should be the use case
    executables.ai.sap.com/description: "Train with live data"
    executables.ai.sap.com/name: "training" # Executable name should describe the workflow in the use case
    artifacts.ai.sap.com/housedataset.kind: "dataset" # Helps in suggesting the kind of inputs that can be attached.
  labels:
    scenarios.ai.sap.com/id: "learning-datalines"
    ai.sap.com/version: "1.0"
spec:
  imagePullSecrets:
    - name: credstutorialrepo # your docker registry secret
  entrypoint: mypipeline
  arguments:
    parameters: # placeholder for string like inputs
        - name: DT_MAX_DEPTH # identifier local to this workflow
  templates:
  - name: mypipeline
    steps:
    - - name: mypredictor
        template: mycodeblock1
  - name: mycodeblock1
    # Add your resource plan here. The annotation should follow metadata > labels > ai.sap.com/resourcePlan: <plan>
    inputs:
      artifacts:  # placeholder for cloud storage attachements
        - name: housedataset # a name for the placeholder
          path: /app/data/ # where to copy in the Dataset in the Docker image
    container:
      image: docker.io/<YOUR_DOCKER_USERNAME>/house-price:03 # Your docker image name
      command: ["/bin/sh", "-c"]
      env:
        - name: DT_MAX_DEPTH # name of the environment variable inside Docker container
          value: "{{workflow.parameters.DT_MAX_DEPTH}}" # value to set from local (to workflow) variable DT_MAX_DEPTH
      args:
        - "python /app/src/main.py"

The following shows the new important lines in the workflows.

####Understanding these changes

1. A placeholder named DT_MAX_DEPTH is created locally in the workflow. It accepts number content of input type: string. The input is then type cast to an integer elsewhere in your code, so it must be a string containing integers. For example: "4" is acceptable because it is a string containing content that can can be type cast to and integer.
2. You create an input env (Environment) variable to your Docker image, named DT_MAX_DEPTH. The value of this variable is fed in from workflow.parameters.DT_MAX_DEPTH,the local name from previous point.

Commit the changes in the GitHub.

Add the following snippet in your workflow to specify resource plan. The resource plan helps specify computing resource required to run your Docker image. The computing resources includes GPU, RAM and Processor. If not mentioned the resource plan defaults to starter which is the entry level resource plan.

spec:
    ...
    templates:
    ...
    - name: mycodeblock1
      metadata:
        labels:
            ai.sap.com/resourcePlan: starter
    ...

INFORMATION: You can always verify computing resource allocated using the following command echo $(lscpu) within your Docker image. The command is the the shell script command of Linux to print system configuration.

[OPTION BEGIN [SAP AI Launchpad]]

You will observe a scenario named House Price (Tutorial) In the ML Operations tab. Click on the scenario row in the table.

Click on the Executables tab. You will find your executable training.

INFORMATION If multiple executables/workflows (YAML files) have the same annotation values for their scenarios, they the are grouped under same scenario in SAP AI Core.

Click on the executable training to view it in more detail. The placeholders that you created in your AI workflow will appear here.

[OPTION END]

[OPTION BEGIN [Postman]]

List the executables for the scenario ID learning-datalines. This is the scenario ID that you specified in the workflow.

RESPONSE

{
    "count": 1,
    "resources": [
        {
            "createdAt": "2022-04-17T13:09:00+00:00",
            "deployable": false,
            "description": "Train with live data",
            "id": "data-pipeline",
            "inputArtifacts": [
                {
                    "name": "housedataset"
                }
            ],
            "modifiedAt": "2022-04-17T13:09:00+00:00",
            "name": "training",
            "outputArtifacts": [],
            "parameters": [
                {
                    "name": "DT_MAX_DEPTH",
                    "type": "string"
                }
            ],
            "scenarioId": "learning-datalines",
            "versionId": "1.0"
        }
    ]
}

[OPTION END]

[OPTION BEGIN [SAP AI Core SDK]]

List the executables for the scenario ID learning-datalines. This is the scenario ID that you specified in the workflow.

response = ai_core_client.executable.query(
    scenario_id = "learning-datalines", resource_group='default'
)

for executable in response.resources:
    for key, value in executable.__dict__.items():
        if "artifact" in key or "parameter" in key:
            print(f"{key} :")
            for placeholder in value:
                print(f" {placeholder.__dict__}")
        else:
            print(f"{key} : {value}")

RESPONSE

id : data-pipeline
scenario_id : learning-datalines
version_id : 1.0
name : training
description : Train with live data
deployable : False
parameters :
 {'name': 'DT_MAX_DEPTH', 'type': <Type.STRING: 'string'>}
input_artifacts :
 {'name': 'housedataset'}
output_artifacts :
 {'name': 'housemodel'}
labels : None
...

[OPTION END]

Observe the value of the name variable in both inputArtifacts and parameters. These represent the placeholder names which were specified earlier in the process. You are required use these names later when creating your configuration.

SAP AI Core only provides your ephemeral (short-lived) storage, while training or inferencing a model. Amazon Web Services (AWS) S3 Object store is the cloud storage used by SAP AI Core for storing datasets and models. Here, they can be stored over a longer time period, and can be transferred to and from SAP AI Core during training or online inferencing.

You need to create AWS S3 object store, using one of the following links:

• If you are a BTP user, create your storage through the SAP Business Technology Platform. While BTP offers alternative storage solutions, this tutorial uses AWS S3.
• If you are not a BTP user, go directly through AWS site

Download and Install the AWS Command Line Interface (CLI).

To configure settings for your CWS CLI, open your terminal and run:

aws configure

Enter your AWS credentials. Note that the appearance of the screen will not change as you type. You can leave the Default output format entry as blank. Press enter to submit your credentials.

Your credentials are stored in your system and used by the AWS CLI to interact with AWS. Fore more information, see Configuring the AWS CLI

Download the train.csv dataset. You need to right click, and save the page as train.csv.

INFORMATION The data used is from Scikit Learn. The source of the data is here.

To upload the datasets to your AWS S3 Storage, paste and edit the following command in the terminal:

aws s3 cp train.csv s3://<YOUR_BUCKET_NAME>/example-dataset/house-price-toy/data/jan/train.csv

This command uploaded the data to a folder called jan. Upload it one more time in another folder called feb, by changing your command as shown:

aws s3 cp train.csv s3://<YOUR_BUCKET_NAME>/example-dataset/house-price-toy/data/feb/train.csv

You now know how to upload and use multiple datasets with SAP AI Core.

List your files in your AWS S3 bucket by editing the following command:

aws s3 ls s3://<YOUR_BUCKET_NAME/example-dataset/house-price-toy/data/

CAUTION: Ensure your file names and format match what you have specified in your code. For example, if you specify ´train.csv´ in your code, the system expects a file called train, which is of type: comma separated value.

An object store secret is required to store credentials to access your AWS S3 buckets, and limit access to a particular directory.

[OPTION BEGIN [SAP AI Launchpad]]

Create an object store secret by clicking Object Store Secrets > Add in your workspace, and completing the dialog box.

[OPTION END]

[OPTION BEGIN [Postman]]

Create an object store secret by clicking POST Create a secret and using the header and body below.

HEADER

CAUTION IF the following Header is not specified, this secret is restricted to the default resource group.

BODY

{
    "name": "mys3",
    "data": {
        "AWS_ACCESS_KEY_ID": "<YOUR_AWS_ID>",
        "AWS_SECRET_ACCESS_KEY": "<YOUR_AWS_KEY>"
    },
    "type": "S3",
    "bucket": "<YOUR_BUCKET_NAME>",
    "endpoint": "s3-eu-central-1.amazonaws.com",
    "region": "eu-central-1",
    "pathPrefix": "example-dataset/house-price-toy"
}

RESPONSE

{
    "message": "secret has been created"
}

[OPTION END]

[OPTION BEGIN [SAP AI Core SDK]]

Edit and execute the following snippet to create object store secret in SAP AI Core.

# Create object Store secret
response = ai_core_client.object_store_secrets.create(
    name = "mys3", # identifier for this secret within your SAP AI Core
    path_prefix = "example-dataset/house-price-toy", # path that we want to limit restrict this secret access to
    type = "S3",
    data = { # Dictionary of credentials of AWS
        "AWS_ACCESS_KEY_ID": "<YOUR_AWS_ID>",
        "AWS_SECRET_ACCESS_KEY": "<YOUR_AWS_KEY>"
    },
    bucket = "<YOUR_BUCKET_NAME>", # Edit this
    region = "eu-central-1", # Edit this
    endpoint = "s3-eu-central-1.amazonaws.com", # Edit this
    resource_group = "default" # object store secret are restricted within this resource group. you may change this when creating secret for another resource group.
)
print(response.__dict__)

[OPTION END]

• The Resource Group must be default
• The Name field is your choice of identifier for your secret within SAP AI Core.
• Entries to the other fields are found in your AWS account. Endpoint
• This is where you specify the host for your S3 service.
• Use the endpoint URL associated with your AWS S3 bucket’s region.
• Example for the EU Central region:s3-eu-central-1.amazonaws.com
• If you are using the standard AWS global endpoint, you can use:
s3.amazonaws.com

Note: This value corresponds to the host element in the credentials you receive when creating the S3 Object Store in BTP. AWS may provide multiple URLs, endpoints, and URIs, so ensure you enter the one specific to your bucket’s region or your S3 service host. has context menu

Why not put a complete path to train.csv as pathPrefix?

You might have noticed that previously you uploaded data to example-dataset/house-price-toy/data/jan/train.csv but here in object store secret the pathPrefix is you set the value example-dataset/house-price-toy. This is because the use of pathPrefix is to restrict access to particular directory of your cloud storage.

Why define a complete path instead of using the pathPrefix? Using a root path only would mean that all files and subdirectories in the path would be copied from your AWS S3 to SAP AI Core. This might not be useful where you have multiple datasets only one of them is in use. Extending the pathPrefix to a complete path allows the user to specify specific artifacts.

With your object store secret created, you can now reference any sub-folders to pathPrefix containing artifacts such as datasets or models.

INFORMATION You may create any number of object store secrets each with unique name. They can point to the same or different object stores.

[OPTION BEGIN [SAP AI Launchpad]]

You can create the create artifact for first train.csv that we uploaded to jan folder by visiting Datasets tab under ML operations and clicking on ADD.

Choose scenario as House Price (Tutorial) and click next.

Enter name as House Price Dataset 101 enter description for the dataset and click next.

Enter the URL as ai://mys3/data/jan and click on next

Enter the labels for your Dataset and click on Review

You would be able to see all the details for the artifact you are trying to register just validate all the data and click on add.

You would be able to see the artifact created in the datasets tab that can be located at ML operations > datasets.

[OPTION END]

[OPTION BEGIN [Postman]]

Create an artifact for the train.csv file that we uploaded to the jan folder, by clicking POST Register artifact and using the body underneath.

BODY

{
    "kind": "dataset",
    "name": "House Price Dataset 101",
    "scenarioId": "learning-datalines",
    "url": "ai://mys3/data/jan",
    "labels": [
        {
            "key": "ext.ai.sap.com/month",
            "value": "Jan"
        }
    ],
    "description": "Prices in the month of Jan"
}

The id returned in the response is the unique identifier of your artifact - not its name.

Create another artifact in the same way, for the feb folder. Refer to the snippet below for guidance on the changes required.

{
    "kind": "dataset",
    "name": "House Price Dataset 201",
    "scenarioId": "learning-datalines",
    "url": "ai://mys3/data/feb",
    "labels": [
        {
            "key": "ext.ai.sap.com/month",
            "value": "Feb"
        }
    ],
    "description": "Prices in the month of Feb"
}

[OPTION END]

[OPTION BEGIN [SAP AI Core SDK]]

Execute the following snippet to create artifact for first train.csv that we uploaded to jan folder.

# Create Artifact
from ai_api_client_sdk.models.artifact import Artifact
from ai_api_client_sdk.models.label import Label

response = ai_core_client.artifact.create(
    name = "House Price Dataset 101", # Custom Non-unqiue identifier
    kind = Artifact.Kind.DATASET,
    url = "ai://mys3/data/jan", #
    scenario_id = "learning-datalines",
    description = "Prices in the month of Jan",
    labels = [
        Label(key="ext.ai.sap.com/month", value="Jan"), # any descriptive key-value pair, helps in filtering, key must have the prefix ext.ai.sap.com/
    ],
    resource_group = "default" # required to restrict object store secret usage within a resource group
)

print(response.__dict__)

Create another artifact in the same way, for the feb folder. Refer to the snippet below for guidance on the changes required.

# Create Artifact
response = ai_core_client.artifact.create(
    name = "House Price Dataset 201",
    kind = Artifact.Kind.DATASET,
    url = "ai://mys3/data/feb",
    scenario_id = "learning-datalines",
    description = "Prices in the month of Feb",
    labels = [
        Label(key="ext.ai.sap.com/month", value="Feb"),
    ],
    resource_group = "default"
)

print(response.__dict__)

[OPTION END]

You have learnt to add data artifacts, allowing you to ingest more data over time.

Important points to notice

1. Notice the url used in above snippet is ai://mys3/data/jan, here mys3 is the object store secret name that you created previously. Hence the path translates as ai://<PATH_PREFIX_OF_mys3>/data/jan which is the directory that your dataset file is located in.
2. The url points to a directory, not a file, which gives you advantage that you can store multiple files in an AWS S3 directory and register the directory containing all files as a single artifact.
3. All the files present in the path referenced by artifact will be copied from your S3 storage to your SAP AI Core instance during training or inferencing. This includes subfolders, apart from where Kind = MODEL.

[OPTION BEGIN [SAP AI Launchpad]]

Navigate to your data set by clicking Workspaces > default > ML Operations > Datasets.

[OPTION END]

[OPTION BEGIN [Postman]]

Get a list of your artifacts by clicking GET Get list of artifacts.

[OPTION END]

[OPTION BEGIN [SAP AI Core SDK]]

Get a list of your artifacts using the following code snippet:

### List Artifacts
response = ai_core_client.artifact.query(resource_group="default")
#
for artifact in response.resources:
    for key, value in artifact.__dict__.items():
        if "label" in key:
            if value is None:
                continue
            print(f"{key} :")
            for label in value:
                print(f" {label.__dict__}")
        else:
            print(f"{key} : {value}")
    print('-'*3)

RESPONSE

...
id : f0a93424-3581-44d5-8c6b-10821fa11a24
name : House Price Dataset 101
url : ai://mys3/data/jan
kind : Kind.DATASET
description : Prices in the month of Jan
scenario_id : learning-datalines
execution_id : None
configuration_id : None
labels :
 {'key': 'ext.ai.sap.com/month', 'value': 'Jan'}
created_at : 2022-04-23 10:01:20
modified_at : 2022-04-23 10:01:20
---
id : d1473922-4bd8-4130-9310-3c5d58fbb7c4
name : House Price Dataset 201
url : ai://mys3/data/feb
kind : Kind.DATASET
description : Prices in the month of Feb
scenario_id : learning-datalines
execution_id : None
configuration_id : None
labels :
 {'key': 'ext.ai.sap.com/month', 'value': 'Feb'}
created_at : 2022-04-18 12:31:34
modified_at : 2022-04-18 12:31:34
...

[OPTION END]

INFORMATION Artifacts appear in the default resource group and the Datasets menu, because you had registered artifacts with resource_group = default and Kind = Dataset in Step 9.

Copy the artifact ID of the January dataset. You will use this value in the placeholders of your workflows to create your execution. The ID of artifacts allows SAP AI Core to ingest data into workflows.

[OPTION BEGIN [SAP AI Launchpad]]

Click ML Operations > Configuration > Create. Enter the following details and click Next.

The field for DT_MAX_DEPTH allows you to use the configuration to pass values to placeholders of hyper-parameters that you prepared earlier in your workflows. In this case, type 3 and click Next.

Locate your artifact (using the unique ID) in the Available Artifacts pane. Click the dropdown menu and the checkbox of housedataset. This is named of the placeholder for dataset in your workflow. As a result, the placeholder will now take the value of the artifact.

Click Review and click Create.

You will redirected to the details page of the newly created configuration.

[OPTION END]

[OPTION BEGIN [Postman]]

Use the artifact ID of the jan dataset and the placeholder names to create a configuration, based on the code snippet. The key value pair for DT_MAX_DEPTH allows you to use the configuration to pass values to placeholders of the hyper-parameters that your prepared earlier in your workflows. In this case, type "3".

BODY

{
    "name": "House Price January 1",
    "scenarioId": "learning-datalines",
    "executableId": "data-pipeline",
    "inputArtifactBindings": [
        {
            "key": "housedataset",
            "artifactId": "<YOUR_JAN_ARTIFACT_ID>"
        }
    ],
    "parameterBindings": [
        {
            "key": "DT_MAX_DEPTH",
            "value": "3"
        }
    ]
}

Important points

1. You bind the artifact in the section inputArtifactBindings, where key denotes the placeholder name from your workflow and artifactId is the unique ID of the artifact that you registered. In later steps, you will bind the feb dataset's artifact ID, to learn how the same workflow can be used with multiple datasets.

2. You provide the value to hyper-parameters using the section parameterBindings, where the key denotes the placeholder and the value is the string. Your code converts this value to an integer type before utilizing it.

[OPTION END]

[OPTION BEGIN [SAP AI Core SDK]]

Paste and edit the code snippet. The key value pair for DT_MAX_DEPTH allows your to use the configuration to pass values to placeholders of the hyper-parameters that your prepared earlier in your workflows. In this case, type "3". You should locate your jan dataset artifact ID by listing all artifacts and using the relevant ID.

from ai_api_client_sdk.models.parameter_binding import ParameterBinding
from ai_api_client_sdk.models.input_artifact_binding import InputArtifactBinding

response = ai_core_client.configuration.create(
    name = "House Price January 1",
    scenario_id = "learning-datalines",
    executable_id = "data-pipeline",
    input_artifact_bindings = [
        InputArtifactBinding(key = "housedataset", artifact_id = "<YOUR_JAN_ARTIFACT_ID>") # placeholder as name
    ],
    parameter_bindings = [
        ParameterBinding(key = "DT_MAX_DEPTH", value = "3") # placeholder name as key
    ],
    resource_group = "default"
)
print(response.__dict__)

Important points

1. You bind the artifact in the section inputArtifactBindings, where key denotes the placeholder name from your workflow and artifactId is the unique ID of the artifact that you registered. In later steps, you will bind the feb dataset's artifact ID, to learn how the same workflow can be used with multiple datasets.

2. You provide the value to hyper-parameters using the section parameterBindings, where the key denotes the placeholder and the value is a string. Your code converts this value to an integer type before utilizing it.

[OPTION END]

This is how you bind values to placeholders to your workflows.

[OPTION BEGIN [SAP AI Launchpad]]

Click Create Execution in the configuration details page. This will start a new execution with the values specified in the configuration. On the Logs tab of your execution, you will see that the data from AWS S3 has been incorporated into SAP AI Core.

[OPTION END]

[OPTION BEGIN [Postman]]

Use the configuration ID from previous step to create and launch a new execution.

Query the execution logs. The logs will show that the data from AWS S3 has been incorporated into SAP AI Core.

[OPTION END]

[OPTION BEGIN [SAP AI Core SDK]]

Use the configuration ID from the previous step to create and launch a new execution.

response = ai_core_client.execution.create(
    configuration_id = '<YOUR_CONFIGURATION_ID>',
    resource_group = 'default'
)

response.__dict__

Query the status of the execution. The logs will show that the data from AWS S3 has been incorporated into SAP AI Core.

# show execution logs
response = ai_core_client.execution.query_logs(
    execution_id = '<YOUR_EXECUTION_ID>',
    resource_group = 'default',
    start = datetime(1990, 1, 1) # Optional, else shows logs of last 1 hour
)

for log in response.data.result:
    print(log.__dict__)

[OPTION END]

Until now you have ingested data and specified variables in SAP AI Core. To save your model to use later, you need to extract the model to cloud storage. We will complete this in the next step.

In your GitHub repository, edit the workflow house-price-train.yaml and replace the contents with the below snippet. Make sure to add your Docker credentials and artifact details to the relevant fields.

apiVersion: argoproj.io/v1alpha1
kind: WorkflowTemplate
metadata:
  name: data-pipeline # executable id, must be unique across all your workflows (YAML files)
  annotations:
    scenarios.ai.sap.com/description: "Learning how to ingest data to workflows"
    scenarios.ai.sap.com/name: "House Price (Tutorial)" # Scenario name should be the use case
    executables.ai.sap.com/description: "Train with live data"
    executables.ai.sap.com/name: "training" # Executable name should describe the workflow in the use case
    artifacts.ai.sap.com/housedataset.kind: "dataset" # Helps in suggesting the kind of artifact that can be attached.
    artifacts.ai.sap.com/housemodel.kind: "model" # Helps in suggesting the kind of artifact that can be generated.
  labels:
    scenarios.ai.sap.com/id: "learning-datalines"
    ai.sap.com/version: "2.0"
spec:
  imagePullSecrets:
    - name: credstutorialrepo # your docker registry secret
  entrypoint: mypipeline
  arguments:
    parameters: # placeholder for string like inputs
        - name: DT_MAX_DEPTH # identifier local to this workflow
  templates:
  - name: mypipeline
    steps:
    - - name: mypredictor
        template: mycodeblock1
  - name: mycodeblock1
    inputs:
      artifacts:  # placeholder for cloud storage attachements
        - name: housedataset # a name for the placeholder
          path: /app/data/ # where to copy in the Dataset in the Docker image
    outputs:
      artifacts:
        - name: housepricemodel # local identifier name to the workflow
          globalName: housemodel # name of the artifact generated, and folder name when placed in S3, complete directory will be `../<executaion_id>/housemodel`. Also used above in annotation
          path: /app/model/ # from which folder in docker image (after running workflow step) copy contents to cloud storage
          archive:
            none:   # specify not to compress while uploading to cloud
              {}
    container:
      image: docker.io/<YOUR_DOCKER_USERNAME>/house-price:03 # Your docker image name
      command: ["/bin/sh", "-c"]
      env:
        - name: DT_MAX_DEPTH # name of the environment variable inside Docker container
          value: "{{workflow.parameters.DT_MAX_DEPTH}}" # value to set from local (to workflow) variable DT_MAX_DEPTH
      args:
        - "python /app/src/main.py"

You added a new outputs section, where you specified files and their directories, which are created during the execution, and will be uploaded to AWS S3 and automatically registered as artifacts in SAP AI Core. You also added a line in the annotations section, which specified the kind of artifact that would be generated. In this case, a model.

All of the contents within your /app/model/ directory, as defined in your Docker image, will be uploaded to AWS S3. This implies you may generate multiple files of any format after training, for example class_labels.npy, model.h5, classifier.pkl or tokens.json.

It is compulsory to create a object store secret named default within your resource group, for your executable to generate models and store them in AWS S3. After execution the model will be saved to PATH_PREFIX_of_default/<execution_id>/housepricemodel in your AWS S3. The housepricemodel is mentioned in the workflow in the previous step.

[OPTION BEGIN [SAP AI Launchpad]]

Create an object store secret by clicking Object Store Secrets > Add in your workspace, and completing the dialog box. Enter default for the secret name.

[OPTION END]

[OPTION BEGIN [Postman]]

TIP You can create multiple object store secrets with different name keys within the same resource group. You can also patch to modify the values of an existing object store secret.

HEADER

CAUTION IF the following Header is not specified, this secret is restricted to the default resource group.

Paste and edit the following snippet:

{
    "name": "default",
    "data": {
        "AWS_ACCESS_KEY_ID": "<YOUR_AWS_ID>",
        "AWS_SECRET_ACCESS_KEY": "<YOUR_AWS_KEY>"
    },
    "type": "S3",
    "bucket": "<YOUR_BUCKET_NAME>",
    "endpoint": "s3-eu-central-1.amazonaws.com",
    "region": "eu-central-1",
    "pathPrefix": "example-dataset/house-price-toy/model"
}

The value of the name key must be default. This should not be confused with the resource group name, which is also default. These are unrelated.

[OPTION END]

[OPTION BEGIN [SAP AI Core SDK]]

TIP You can create multiple object store secrets with different name keys within the same resource group. You can also patch to modify values of an existing object store secret.

Paste and edit the following snippet:

# Create object Store secret for placing models to S3
response = ai_core_client.object_store_secrets.create(
    name = "default", # name must be `default`
    path_prefix = "example-dataset/house-price-toy/model", # ensure path prefix is targeted to your models subdirectory
    type = "S3",
    data = { # Dictionary of credentials of AWS
        "AWS_ACCESS_KEY_ID": "<YOUR_AWS_ID>",
        "AWS_SECRET_ACCESS_KEY": "<YOUR_AWS_KEY>"
    },
    bucket = "<YOUR_BUCKET_NAME>", # bucket name,
    region = "eu-central-1", # Edit this
    endpoint = "s3-eu-central-1.amazonaws.com", # Edit this
    resource_group = "default"
)
print(response.__dict__)

The value of the name key must be default. This should not be confused with the resource group name, which is also default. These are unrelated.

[OPTION END]

This time, train the model with the feb dataset and with a different hyper-parameter value.

[OPTION BEGIN [SAP AI Launchpad]]

On your SAP AI Launchpad, click ML Operations > Configuration > Create.

Enter a configuration name and select your other details. Select your updated the version of workflow here.

Type 5 for the DT_MAX_DEPTH field and click Next.

Attach the feb artifact that you have registered and click Review.

click Create.

[OPTION END]

[OPTION BEGIN [Postman]]

Paste and edit the snippet below. You should locate your feb dataset artifact ID by listing all artifacts and then using the relevant ID.

BODY

{
    "name": "House Price Feburary 1",
    "scenarioId": "learning-datalines",
    "executableId": "data-pipeline",
    "inputArtifactBindings": [
        {
            "key": "housedataset",
            "artifactId": "<YOUR_FEB_ARTIFACT_ID>"
        }
    ],
    "parameterBindings": [
        {
            "key": "DT_MAX_DEPTH",
            "value": "5"
        }
    ]
}

[OPTION END]

[OPTION BEGIN [SAP AI Core SDK]]

Paste and edit the snippet below. You should locate your feb dataset artifact ID by listing all artifacts and then using the relevant ID.

from ai_api_client_sdk.models.parameter_binding import ParameterBinding
from ai_api_client_sdk.models.input_artifact_binding import InputArtifactBinding

response = ai_core_client.configuration.create(
    name = "House Price Feburary 1",
    scenario_id = "learning-datalines",
    executable_id = "data-pipeline",
    input_artifact_bindings = [
        InputArtifactBinding(key = "housedataset", artifact_id = "<YOUR_FEB_ARTIFACT_ID>") # placeholder as name
    ],
    parameter_bindings = [
        ParameterBinding(key = "DT_MAX_DEPTH", value = "5") # placeholder name as key
    ],
    resource_group = "default"
)
print(response.__dict__)

[OPTION END]

Use your new configuration to create an execution.

[OPTION BEGIN [SAP AI Launchpad]]

Click Create Execution in the configuration details page.

To see the details of your new model, click the model card, and then on execution in the Process Flow. The information is also available through ML Operations > Models.

[OPTION END]

[OPTION BEGIN [Postman]]

List the execution status.

[OPTION END]

[OPTION BEGIN [SAP AI Core SDK]]

To query the execution status, paste and edit the code snippet below.

# execute this multiple times in interval of 30 seconds
response = ai_core_client.execution.get(
    execution_id = '<YOUR_EXECUTION_ID>',
    resource_group = 'default'
)

for key, value in response.__dict__.items():
    if "output" in key:
        print(f"{key} : ")
        for artifact in value:
            print(f" {artifact.__dict__}")
    else:
        print(f"{key} : {value}")

[OPTION END]

When your execution shows status COMPLETED, you will see that a new model artifact called housepricemodel has been generated. Note that the outputArtifacts are automatically registered and copied to AWS S3. Note that your artifact is of the kind model and that its ID is its only unique identifier - not its name.

Generating and associating metrics (model quality) will covered in a separate tutorial.

Go to executions and click on Schedule.

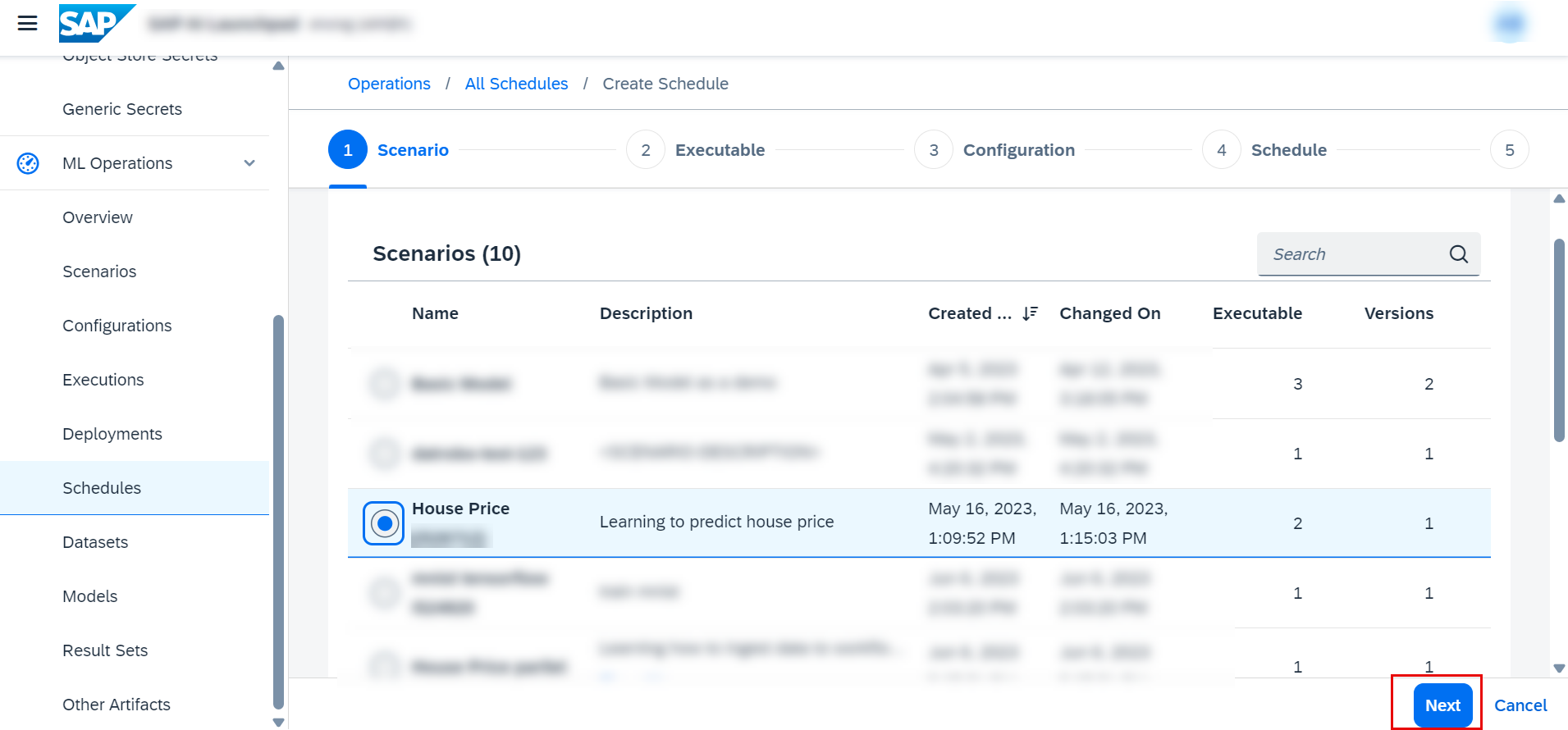

Choose your scenario and click on Next.

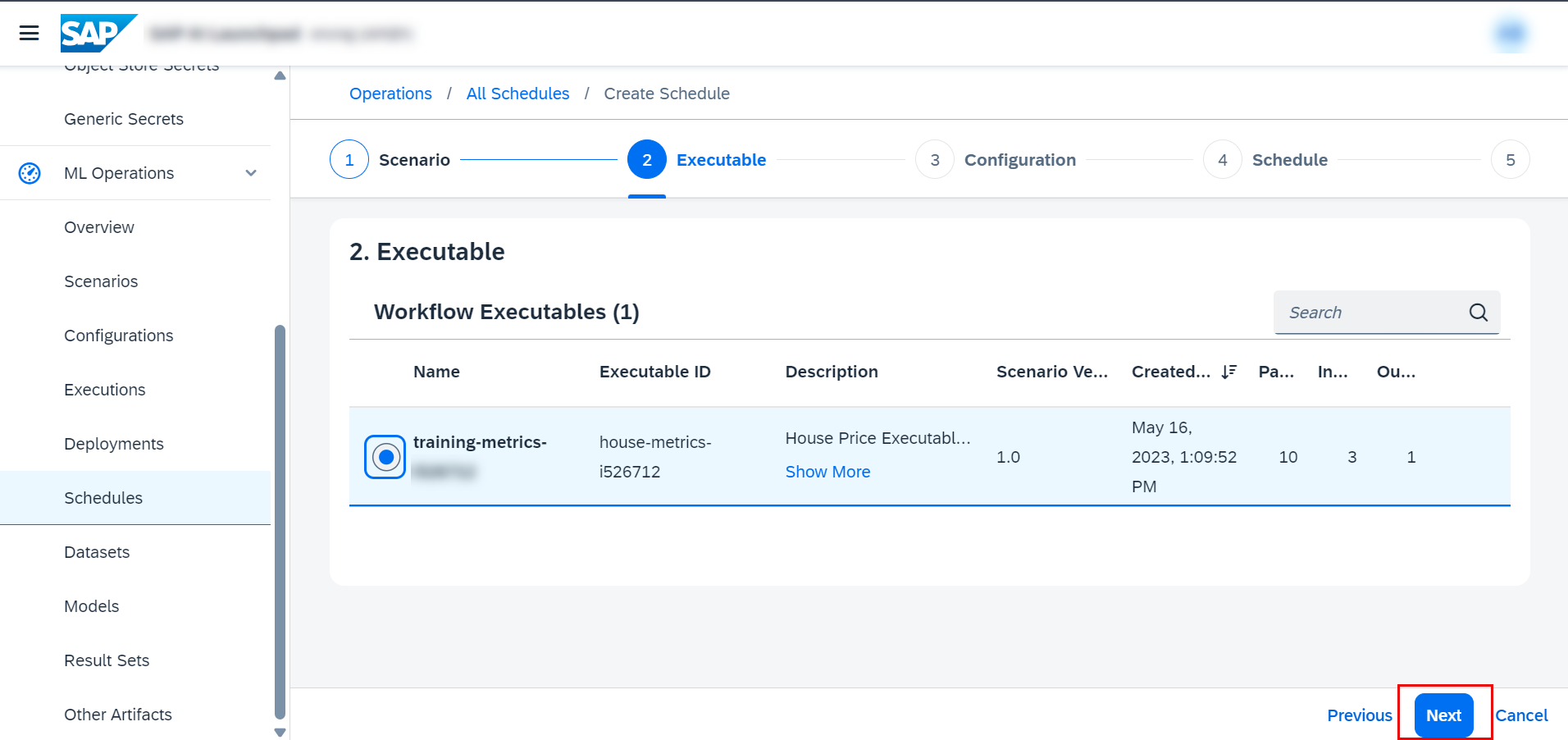

Choose your executable and click on Next.

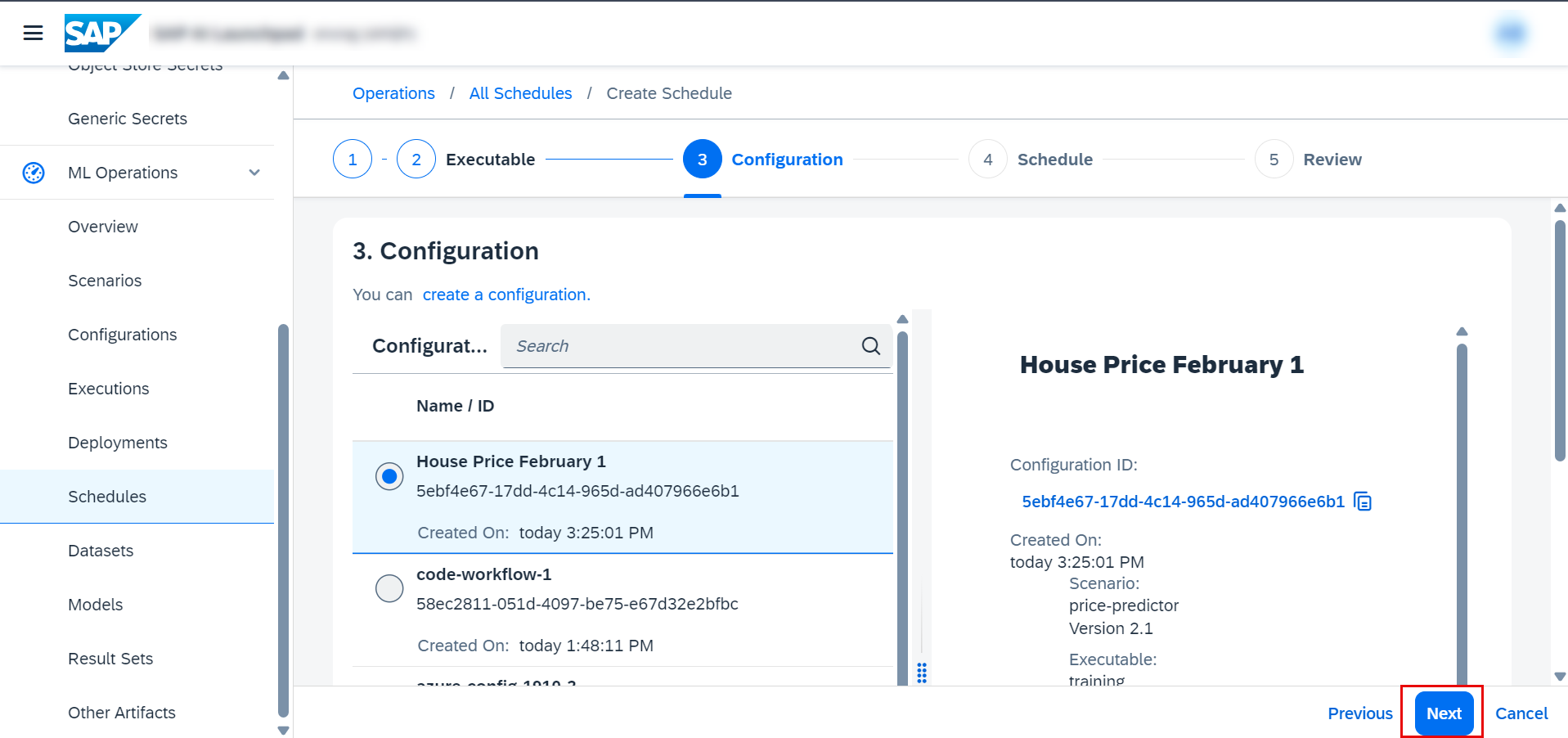

Choose your configuration and click on Next.

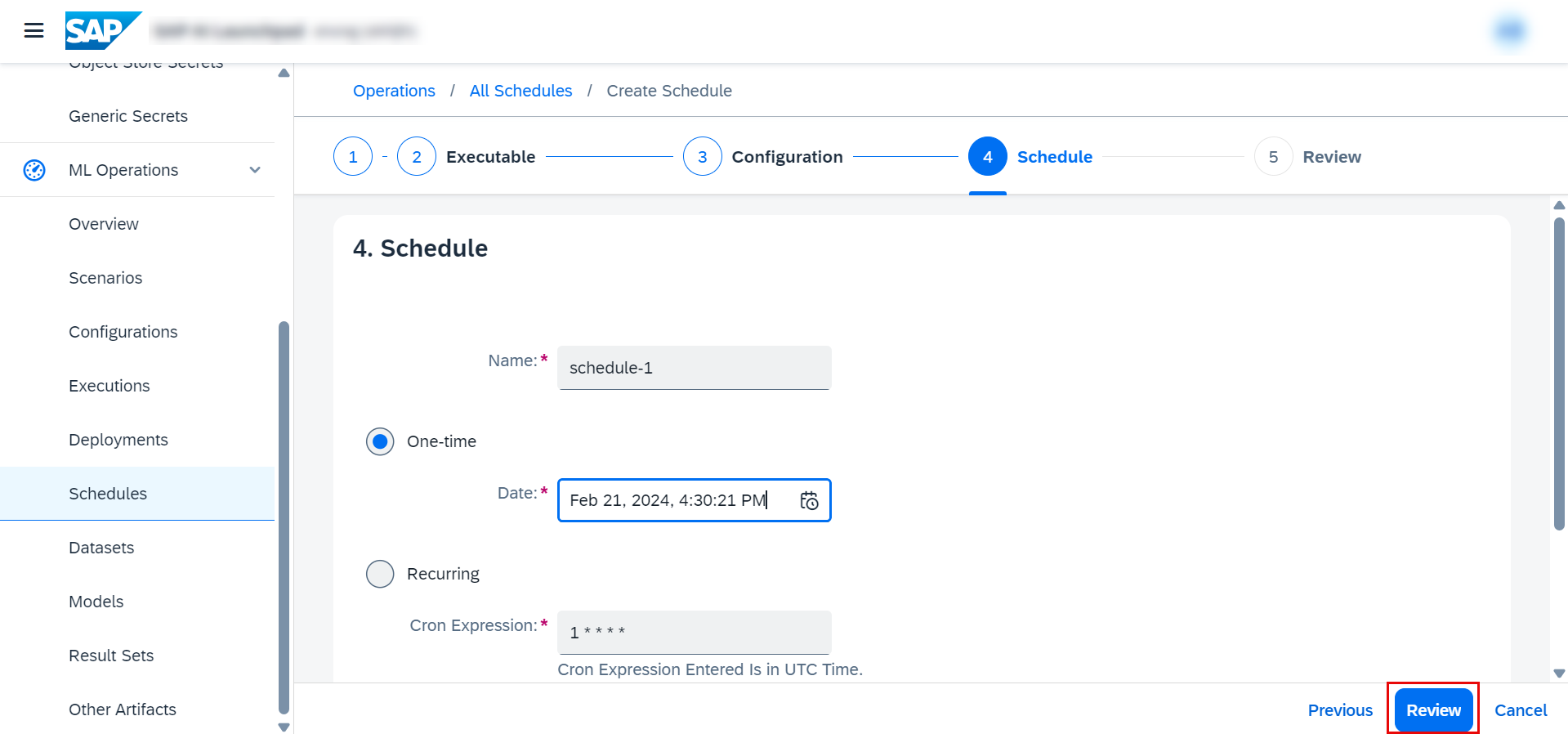

Give a name for the schedule and set the time.

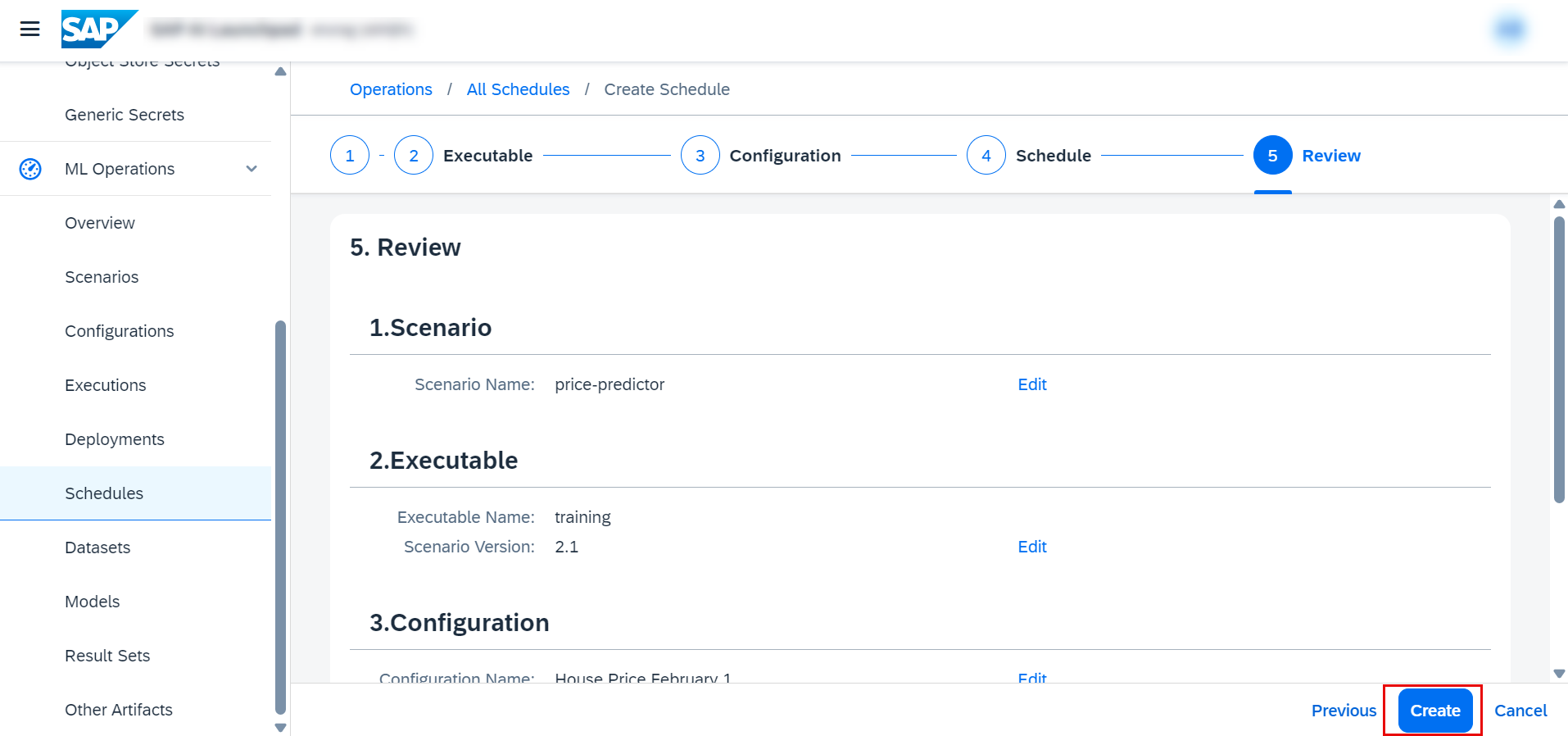

Click Create.

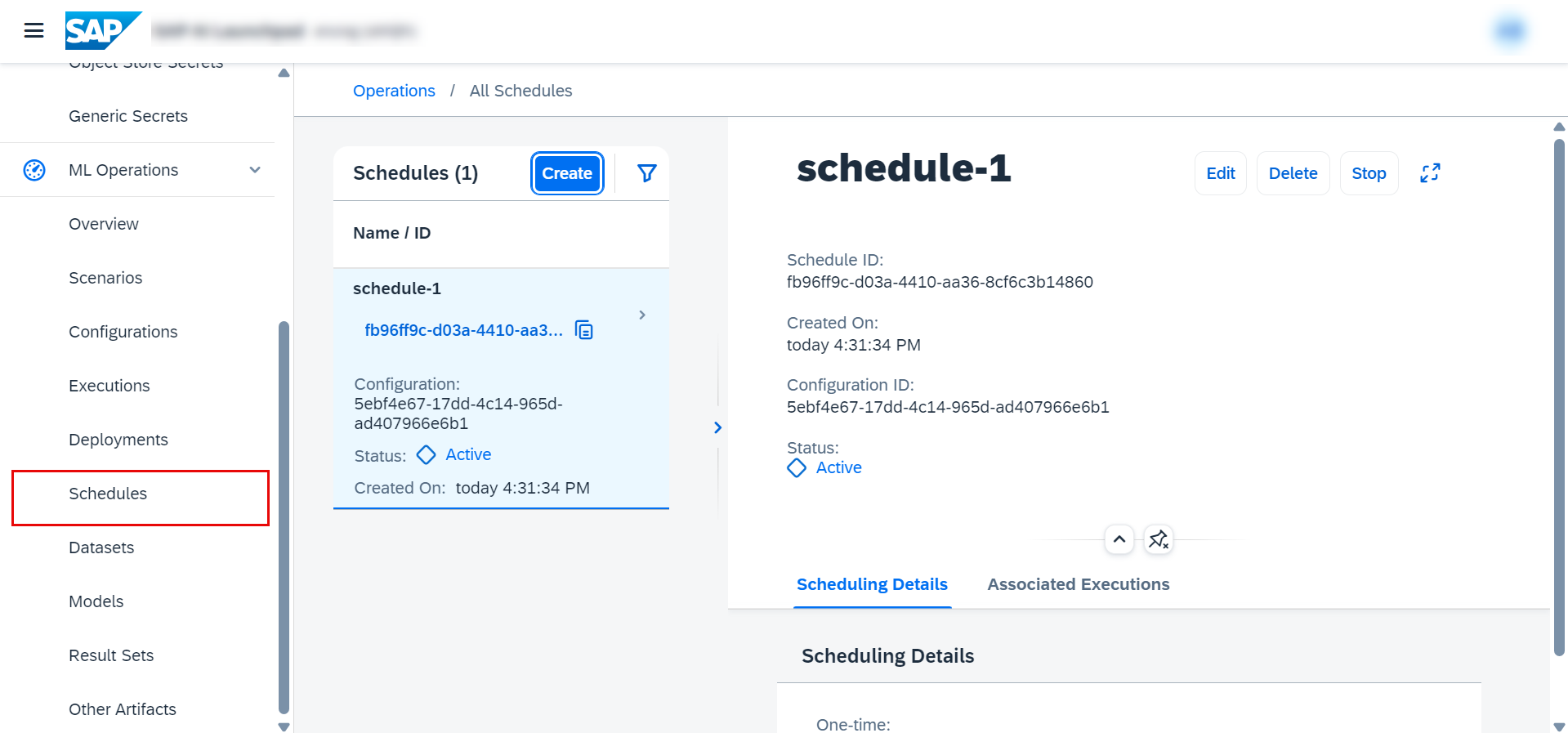

Now go to Schedules to see your schedules.

List your new files by pasting and editing the following snippet in your terminal.

aws s3 ls s3://<YOUR_BUCKET_NAME>/example-dataset/house-price-toy/model/<YOUR_EXECUTION_ID>/housepricemodel

You are listing the files in the path example-dataset/house-price-toy/model/ because this is the value you set earlier for the pathPrefix variable, for your object store secret named default.
