We're excited to have our back-end up and running, and we've gotten a brief look at the Elm language. Now, let's figure out how we can write Elm code for the front-end of our Phoenix application.

We already installed Elm globally in the last chapter, and now we can take a look at configuring Elm with Phoenix using Webpack.

Phoenix front-end files are located in the assets folder. Let's begin by looking at the existing package.json file Phoenix gives us by default:

{
  "repository": {},
  "license": "MIT",
  "scripts": {
    "deploy": "webpack --mode production",
    "watch": "webpack --mode development --watch"
  },
  "dependencies": {
    "phoenix": "file:../deps/phoenix",
    "phoenix_html": "file:../deps/phoenix_html"
  },
  "devDependencies": {
    "@babel/core": "^7.0.0",
    "@babel/preset-env": "^7.0.0",
    "babel-loader": "^8.0.0",
    "copy-webpack-plugin": "^4.5.0",
    "css-loader": "^0.28.10",
    "mini-css-extract-plugin": "^0.4.0",
    "optimize-css-assets-webpack-plugin": "^4.0.0",
    "uglifyjs-webpack-plugin": "^1.2.4",
    "webpack": "4.4.0",
    "webpack-cli": "^2.0.10"
  }
}

Phoenix comes preloaded with Webpack as the front-end build tool, which we can see listed in the devDependencies above. Our initial configuration will take some work, but afterward we'll be able to narrow our focus to developing features with Elixir and Elm.

Let's navigate to the assets folder from the command line and run the following command to ensure our project includes the elm compiler and the elm-webpack-loader tool:

$ cd assets
$ npm install --save elm elm-webpack-loader

This will add two new lines to the dependencies section of our package.json file.

"dependencies": {
  "elm": "^0.19.0",
  "elm-webpack-loader": "^5.0.0",
  "phoenix": "file:../deps/phoenix",
  "phoenix_html": "file:../deps/phoenix_html"
},

We'll need a place to put our Elm code inside our Phoenix application. So let's create a new folder called elm inside our assets folder. We'll use this folder to store all of our Elm source code. This also allows us to write our Elm front-end code with the rest of our front-end code.

$ cd assets
$ mkdir elm

The Elm source code we write will be committed to our repository, but our Phoenix application will use Webpack and elm-webpack-loader to automatically compile it to JavaScript so we don't have to do it manually.

The default .gitignore file is configured to ignore all the files that get added to the node_modules folder. So our repository tracks changes to the package.json file, but ignores all the files created in the node_modules directory when we ran the npm install command.

Let's take this opportunity to update the .gitignore file in the root of our platform project so our repository won't need to track extraneous files that Elm will generate for us. Similar to the way that npm creates a node_modules folder, Elm will generate a folder called elm-stuff that we can ignore.

Open the .gitignore file at the root of our project, and add the following code to the bottom:

# Elm
/assets/elm/elm-stuff

Now, run the following command from inside the assets/elm folder to set up our new Elm project within Phoenix:

$ elm init

It should show similar output to what we saw in the previous chapter and generate both the elm.json file and a new src folder.

Inside our new assets/elm/src folder, let's create a file called Main.elm and add the following content:

module Main exposing (main)

import Html exposing (Html, text)


main : Html msg
main =
    text "Hello from Elm!"

This is a simple Elm program that will print "Hello from Elm!" in the browser once we get everything wired together. The way it will work is that the Webpack build tool will watch for changes to our Elm source code, and then compile the results to a JavaScript file. First, we'll need to configure Webpack so the changes we make to the assets/elm/src/Main.elm file will be compiled automatically.

Inside the assets folder, open the webpack.config.js file and add to the rules section. It already has rules to handle .js files and .css files, and we'll be adding another block below those to handle .elm files. Here is what the rules should look like (note that the .js and .css sections have been trimmed so you can focus on the .elm section):

// ...
module: {
  rules: [
    { test: /\.js$/ /* ... */ },
    { test: /\.css$/ /* ... */ },
    {
      test: /\.elm$/,
      exclude: [/elm-stuff/, /node_modules/],
      use: {
        loader: 'elm-webpack-loader',
        options: {
          cwd: path.resolve(__dirname, 'elm')
        }
      }
    }
  ]
},
// ...

This code is basically telling Webpack how to handle files that have a .elm extension. We're using elm-webpack-loader and the cwd option (which is short for "change working directory") to look in our assets/elm folder.

Check out the README in the elm-webpack-loader repository for additional options too. We can use this later to enable the Elm debugger in the development environment and optimize assets when we deploy to production.

We'll still need to take a few additional steps before we can render our Elm application in the browser, but at this point we should be able to get Phoenix to compile our Elm source code when we run the server with mix phx.server.

Now that Webpack is automatically compiling our Elm code in Main.elm, we can find a place to display our front-end application within Phoenix.

We'll use the same index.html.eex page we worked with previously. Here's what our existing application looks like with a user signed in.

Let's replace everything below the header with our new Elm front-end. To do this, we'll open the lib/platform_web/templates/page/index.html.eex and and replace everything with a single line:

<div id="elm-container"></div>

Now, we can embed our Elm application inside this div element. Let's open the assets/js/app.js file and add the following code at the bottom:

// Elm
import { Elm } from "../elm/src/Main.elm"

Elm.Main.init({
  node: document.getElementById("elm-container")
})

With our configuration finished, we now have the ability to write Elm code in our Phoenix application! The code in our Main.elm file is being automatically compiled to JavaScript using our Webpack configuration, and then the resulting Elm application is inserted into our Phoenix application.

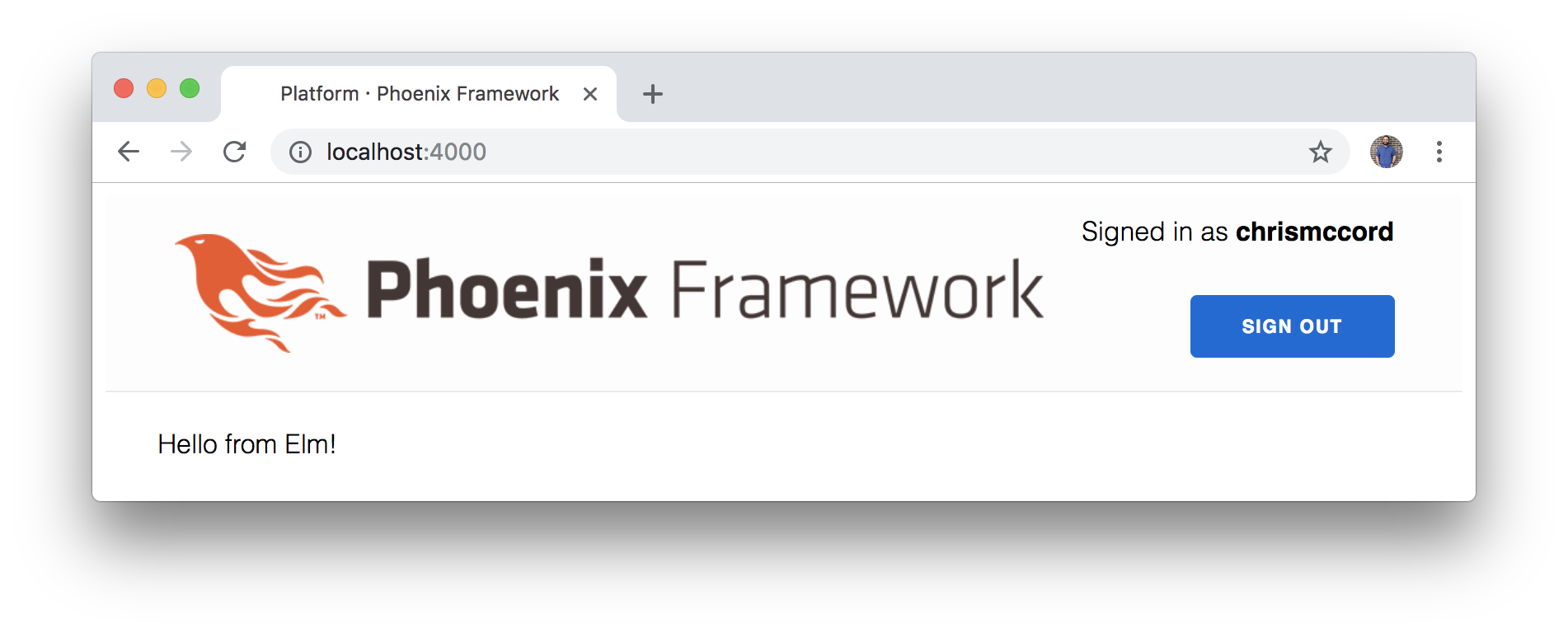

Try loading the http://localhost:4000 route and logging in to see the working Elm output:

One of the great features is that we can keep working with Elm, and the live reload feature from Phoenix allows us to see changes without needing to restart the server or refresh the page in the browser. With with the Phoenix server running, try making a small change to the string in our Main.elm file:

module Main exposing (main)

import Html exposing (Html, text)


main : Html msg
main =
    text "Hello from Elm inside Phoenix!"

The content should be reloaded in the browser without needing a refresh.

We've come a long way already in this book, and we now have the ability to write code in both Elixir and Elm to create our platform. In this chapter, we learned about configuring Elm to work inside Phoenix, and this will enable us to start building the front-end for our application.

In the next chapter, we'll start putting together our Elm front-end application so that we can start working with the JSON data from our API.
