Runtime Performance Comparison

Because :doc:`SortedContainers<index>` is implemented in pure-Python, its performance depends directly on the Python runtime. :doc:`SortedContainers<index>` was primarily developed, tested and benchmarked on CPython 2.7, specifically build:

Python 2.7.11 (default, Mar  1 2016, 18:40:10)
[GCC 4.2.1 Compatible Apple LLVM 7.0.2 (clang-700.1.81)] on darwin

Not all runtimes are created equal. The graphs below compare :doc:`SortedContainers<index>` running on the CPython 2.7, CPython 3.5 and PyPy 5.1 runtimes. The PyPy 5.1 runtime displays much more variability due to its JIT-ed nature. Once the just-in-time compiler optimizes the code, performance is often two to ten times faster.

Performance of competing implementations are benchmarked against the CPython 2.7 runtime. An :doc:`implementation performance comparison<performance>` is also included with data from popular sorted container packages.

:doc:`SortedContainers<index>` uses a segmented-list data structure similar to a B-tree limited to two levels of nodes. As part of the implementation, a load factor is used to determine how many values should be stored in each node. This can have a significant impact on performance and a :doc:`load factor performance comparison<performance-load>` is also provided.

Though these benchmarks exercise only one API repeatedly, an effort has also been made to simulate real-world workloads. The :doc:`simulated workload performance comparison<performance-workload>` contains examples with comparisons to other implementations, load factors, and runtimes.

SortedList

Graphs comparing :doc:`SortedList<sortedlist>` performance.

__init__

Initializing with a list of random numbers.

_static/SortedList_runtime-init.png

add

Randomly adding values using :ref:`SortedList.add<SortedList.add>`.

_static/SortedList_runtime-add.png

contains

Randomly testing membership using :ref:`SortedList.__contains__<SortedList.__contains__>`.

_static/SortedList_runtime-contains.png

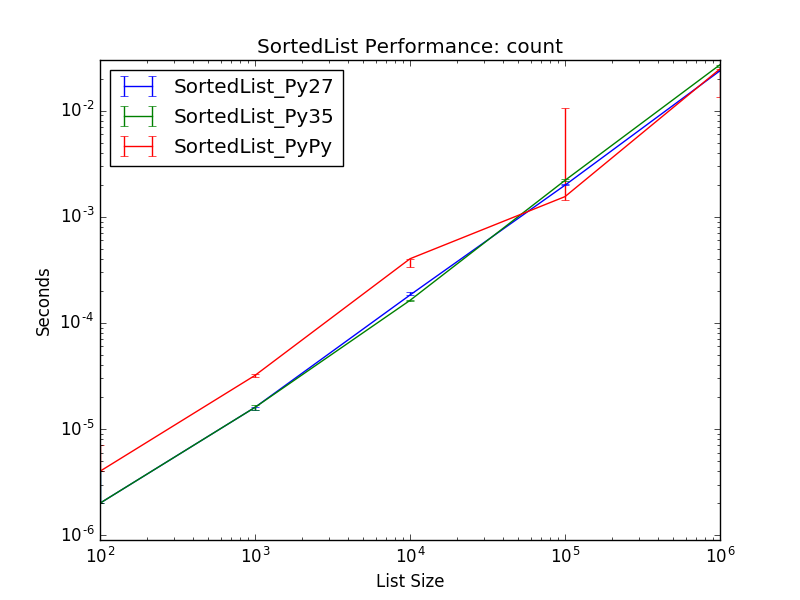

count

Counting objects at random using :ref:`SortedList.count<SortedList.count>`.

_static/SortedList_runtime-count.png

__delitem__

Deleting objects at random using :ref:`SortedList.__delitem__<SortedList.__delitem__>`.

_static/SortedList_runtime-delitem.png

__getitem__

Retrieving ojbects by index using :ref:`SortedList.__getitem__<SortedList.__getitem__>`.

_static/SortedList_runtime-getitem.png

index

Finding the index of an object using :ref:`SortedList.index<SortedList.index>`.

_static/SortedList_runtime-index.png

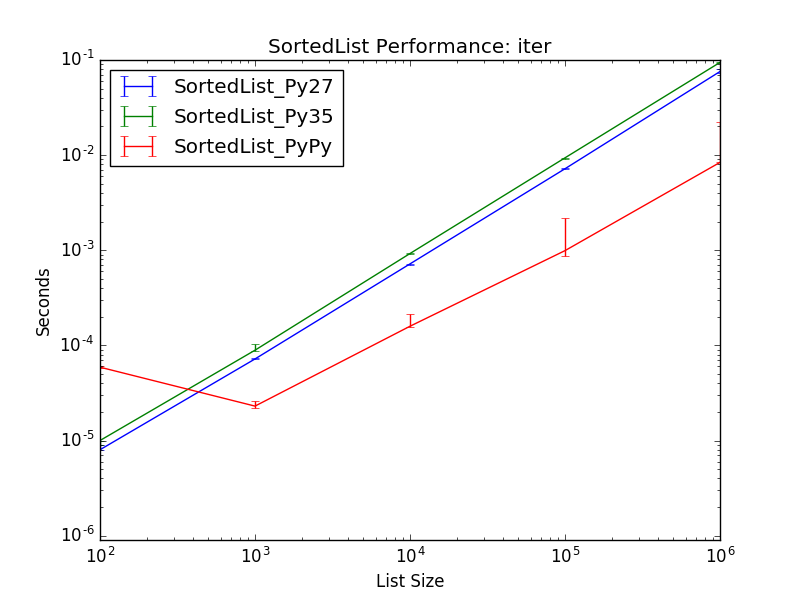

iter

Iterating a SortedList using :ref:`SortedList.__iter__<SortedList.__iter__>`.

_static/SortedList_runtime-iter.png

pop

Removing the last object using :ref:`SortedList.pop<SortedList.pop>`.

_static/SortedList_runtime-pop.png

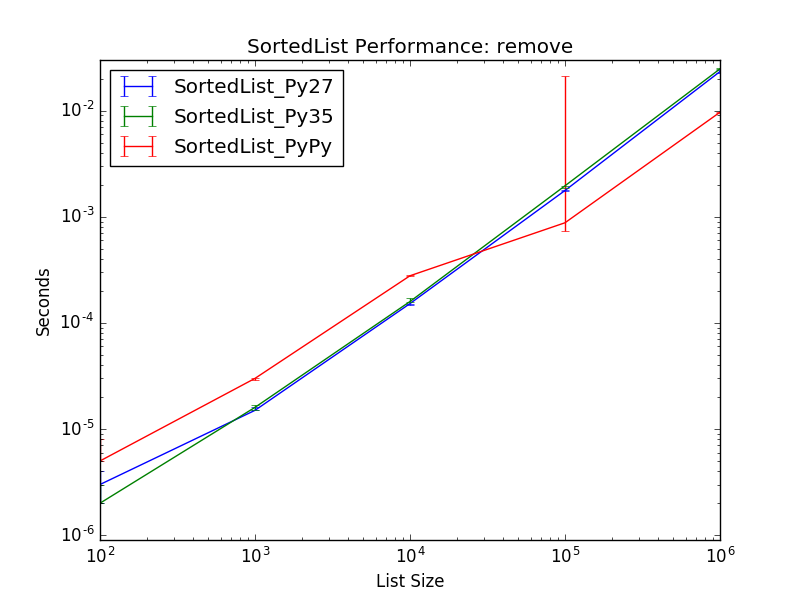

remove

Remove an object at random using :ref:`SortedList.remove<SortedList.remove>`.

_static/SortedList_runtime-remove.png

update_large

Updating a SortedList with a large iterable using :ref:`SortedList.update<SortedList.update>`.

_static/SortedList_runtime-update_large.png

update_small

Updating a SortedList with a small iterable using :ref:`SortedList.update<SortedList.update>`.

_static/SortedList_runtime-update_small.png

SortedDict

Graphs comparing :doc:`SortedDict<sorteddict>` performance.

__init__

Initializing with a list of pairs of random numbers.

_static/SortedDict_runtime-init.png

__contains__

Given a key at random, test whether the key is in the dictionary using :ref:`SortedDict.__contains__<SortedDict.__contains__>`.

_static/SortedDict_runtime-contains.png

__getitem__

Given a key at random, retrieve the value using :ref:`SortedDict.__getitem__<SortedDict.__getitem__>`.

_static/SortedDict_runtime-getitem.png

__setitem__

Given a key at random, set the value using :ref:`SortedDict.__setitem__<SortedDict.__setitem__>`.

_static/SortedDict_runtime-setitem.png

__delitem__

Given a key at random, delete the value using :ref:`SortedDict.__delitem__<SortedDict.__delitem__>`.

_static/SortedDict_runtime-delitem.png

iter

Iterate the keys of a SortedDict using :ref:`SortedDict.__iter__<SortedDict.__iter__>`.

_static/SortedDict_runtime-iter.png

setitem_existing

Given an existing key at random, set the value using :ref:`SortedDict.__setitem__<SortedDict.__setitem__>`.

_static/SortedDict_runtime-setitem_existing.png

SortedSet

Graphs comparing :doc:`SortedSet<sortedset>` performance.

__init__

Initializing with a list of random numbers.

_static/SortedSet_runtime-init.png

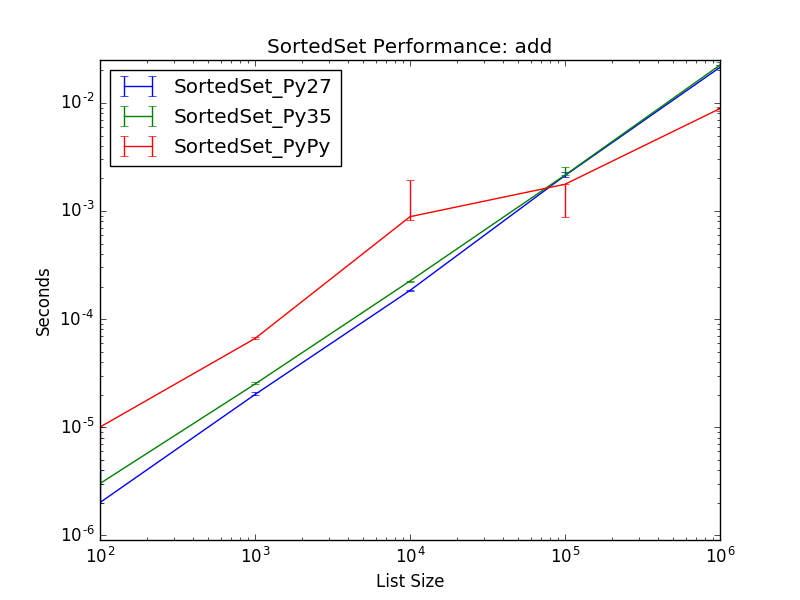

add

Randomly add values using :ref:`SortedSet.add<SortedSet.add>`.

_static/SortedSet_runtime-add.png

contains

Randomly test membership using :ref:`SortedSet.__contains__<SortedSet.__contains__>`.

_static/SortedSet_runtime-contains.png

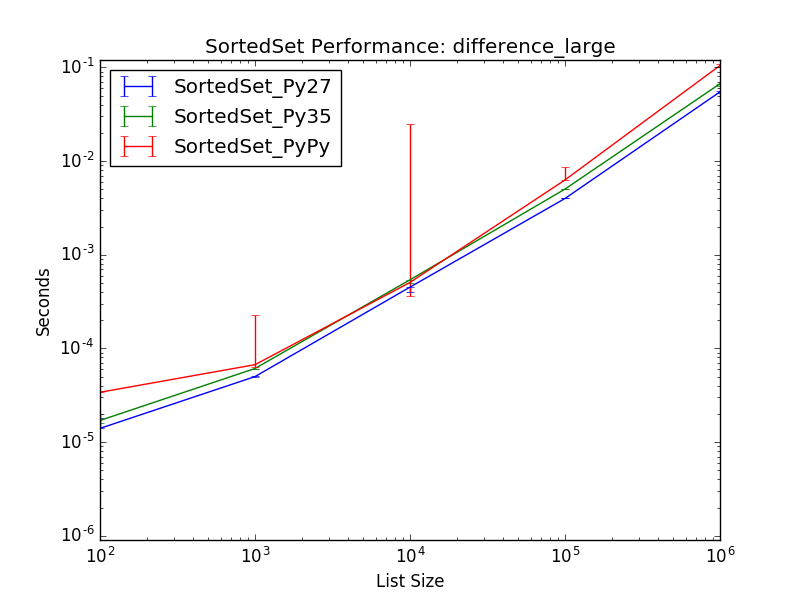

difference_large

Set difference using :ref:`SortedSet.difference<SortedSet.difference>`.

_static/SortedSet_runtime-difference_large.png

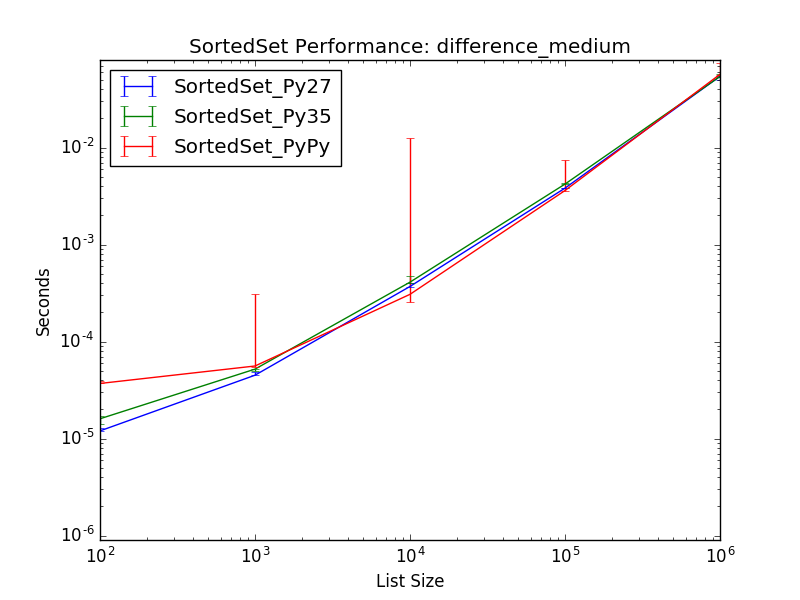

difference_medium

Set difference using :ref:`SortedSet.difference<SortedSet.difference>`.

_static/SortedSet_runtime-difference_medium.png

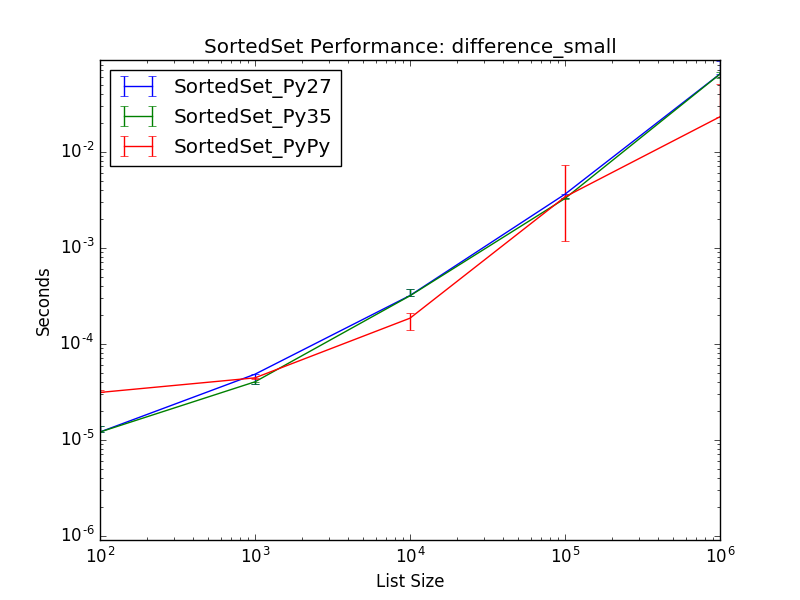

difference_small

Set difference using :ref:`SortedSet.difference<SortedSet.difference>`.

_static/SortedSet_runtime-difference_small.png

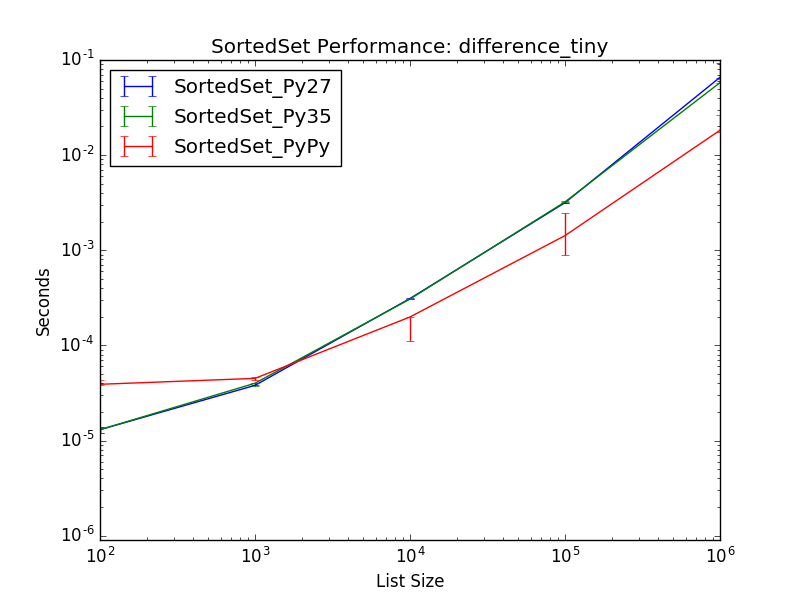

difference_tiny

Set difference using :ref:`SortedSet.difference<SortedSet.difference>`.

_static/SortedSet_runtime-difference_tiny.png

difference_update_large

Set difference using :ref:`SortedSet.difference_update<SortedSet.difference_update>`.

_static/SortedSet_runtime-difference_update_large.png

difference_update_medium

Set difference using :ref:`SortedSet.difference_update<SortedSet.difference_update>`.

_static/SortedSet_runtime-difference_update_medium.png

difference_update_small

Set difference using :ref:`SortedSet.difference_update<SortedSet.difference_update>`.

_static/SortedSet_runtime-difference_update_small.png

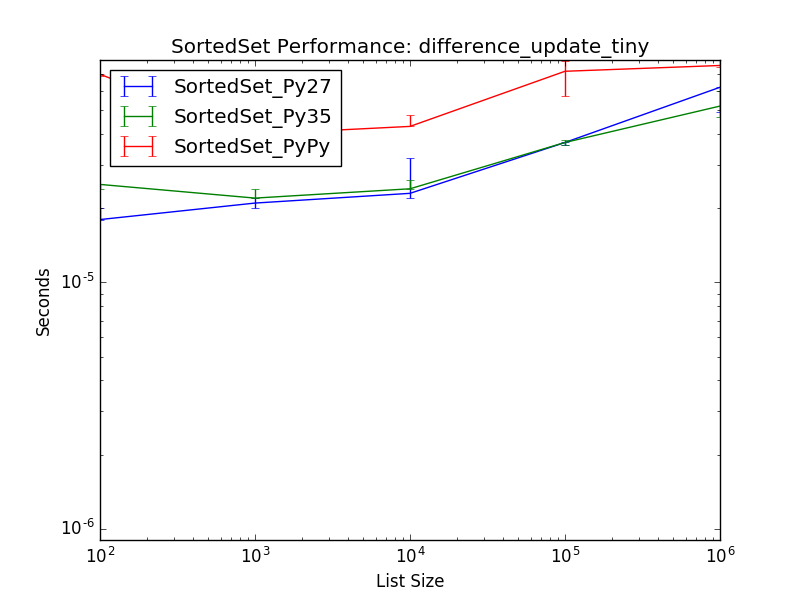

difference_update_tiny

Set difference using :ref:`SortedSet.difference_update<SortedSet.difference_update>`.

_static/SortedSet_runtime-difference_update_tiny.png

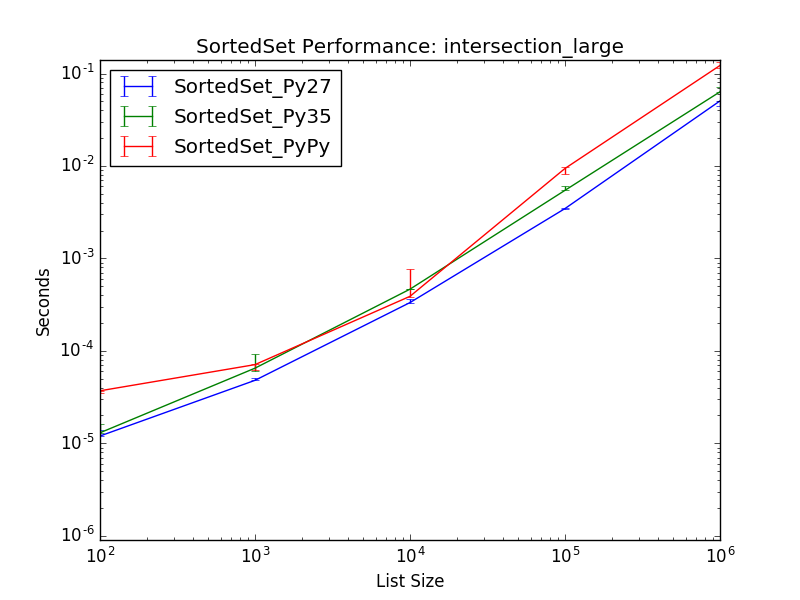

intersection_large

Set intersection using :ref:`SortedSet.intersection<SortedSet.intersection>`.

_static/SortedSet_runtime-intersection_large.png

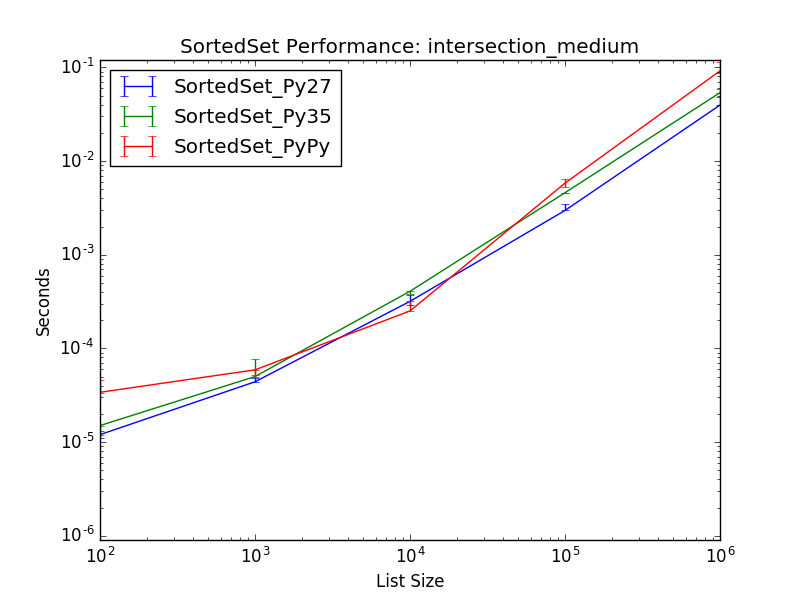

intersection_medium

Set intersection using :ref:`SortedSet.intersection<SortedSet.intersection>`.

_static/SortedSet_runtime-intersection_medium.png

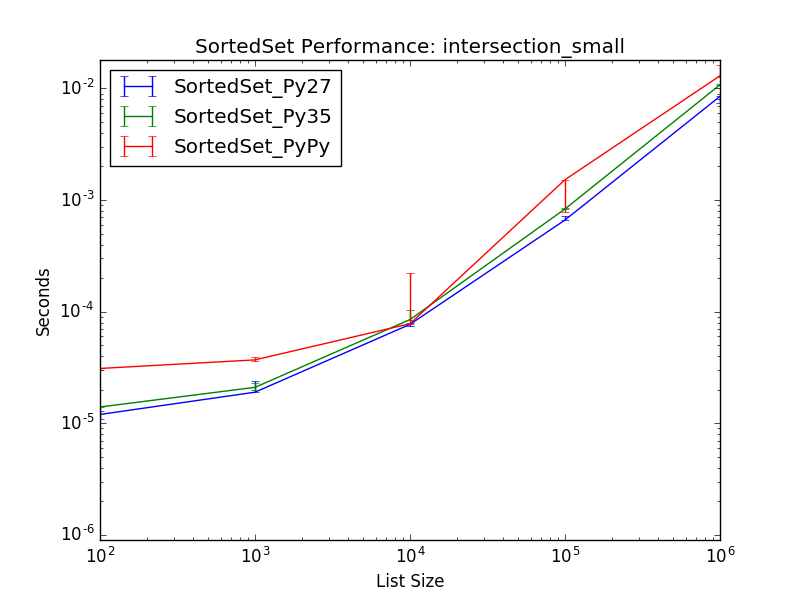

intersection_small

Set intersection using :ref:`SortedSet.intersection<SortedSet.intersection>`.

_static/SortedSet_runtime-intersection_small.png

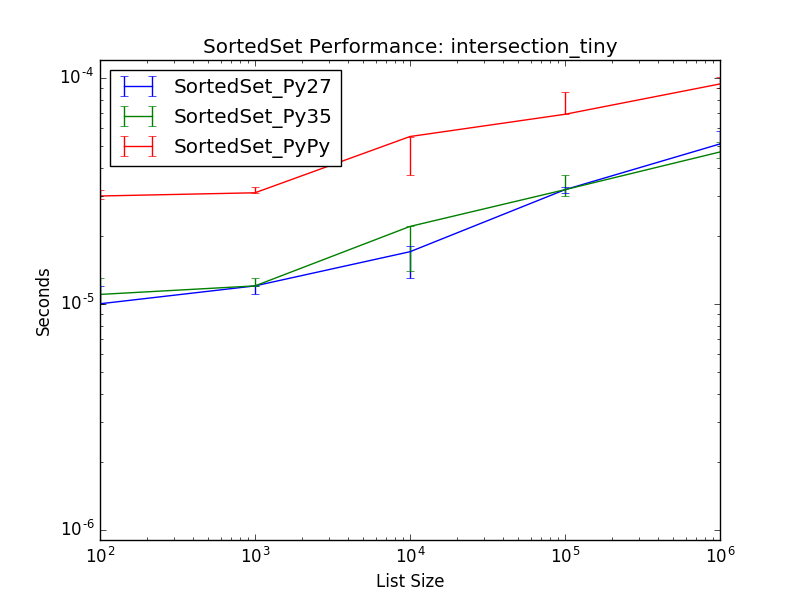

intersection_tiny

Set intersection using :ref:`SortedSet.intersection<SortedSet.intersection>`.

_static/SortedSet_runtime-intersection_tiny.png

intersection_update_large

Set intersection using :ref:`SortedSet.intersection_update<SortedSet.intersection_update>`.

_static/SortedSet_runtime-intersection_update_large.png

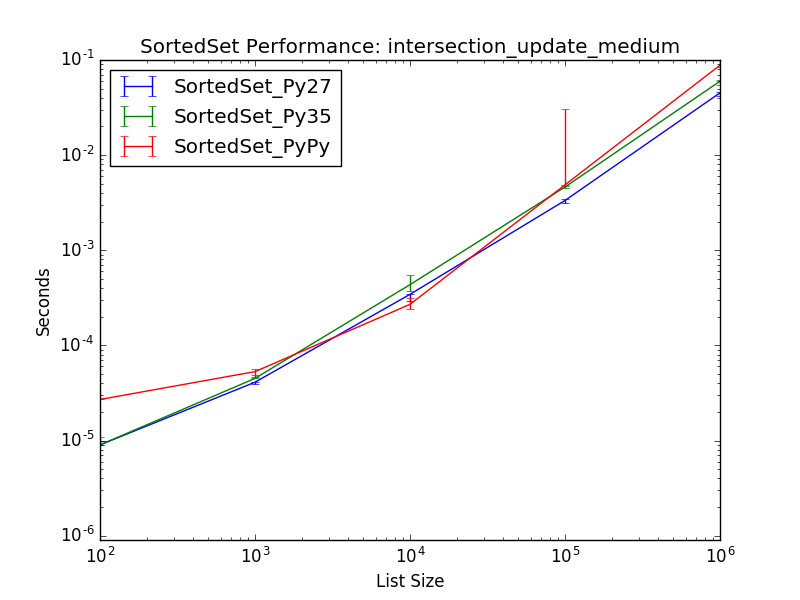

intersection_update_medium

Set intersection using :ref:`SortedSet.intersection_update<SortedSet.intersection_update>`.

_static/SortedSet_runtime-intersection_update_medium.png

intersection_update_small

Set intersection using :ref:`SortedSet.intersection_update<SortedSet.intersection_update>`.

_static/SortedSet_runtime-intersection_update_small.png

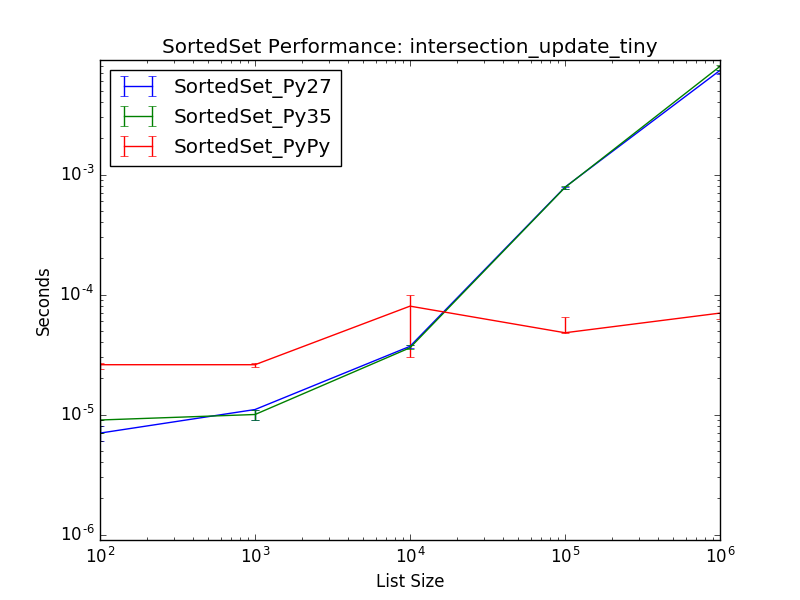

intersection_update_tiny

Set intersection using :ref:`SortedSet.intersection_update<SortedSet.intersection_update>`.

_static/SortedSet_runtime-intersection_update_tiny.png

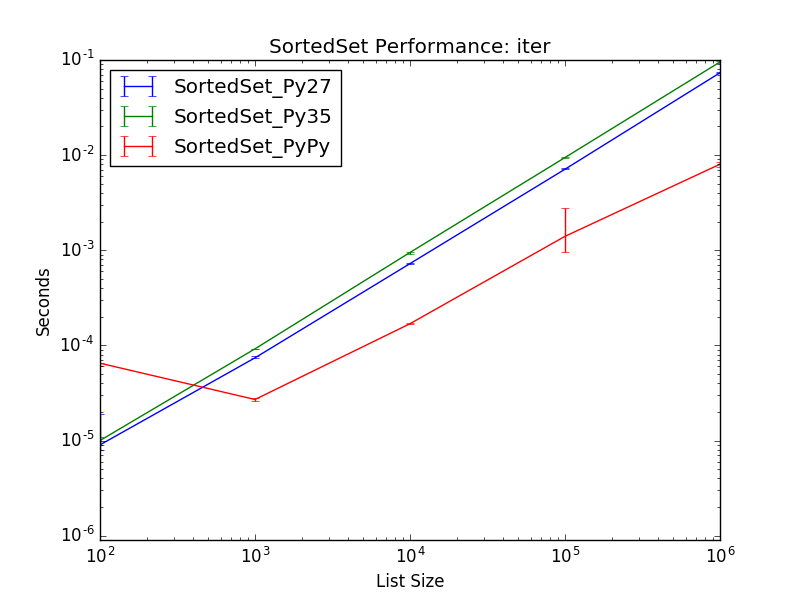

iter

Iterating a set using :ref:`iter(SortedSet)<SortedSet.__iter__>`.

_static/SortedSet_runtime-iter.png

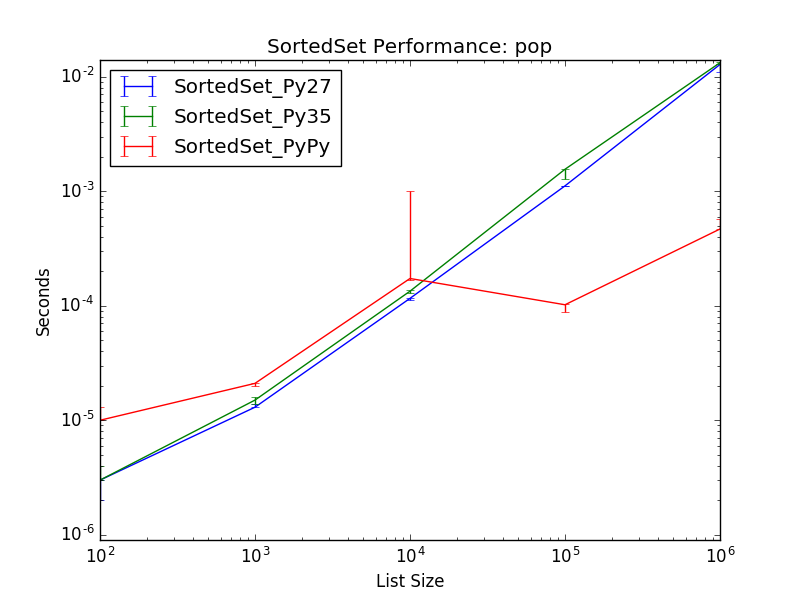

pop

Remove the last item in a set using :ref:`SortedSet.pop<SortedSet.pop>`.

_static/SortedSet_runtime-pop.png

remove

Remove an item at random using :ref:`SortedSet.remove<SortedSet.remove>`.

_static/SortedSet_runtime-remove.png

union_large

Set union using :ref:`SortedSet.union<SortedSet.union>`.

_static/SortedSet_runtime-union_large.png

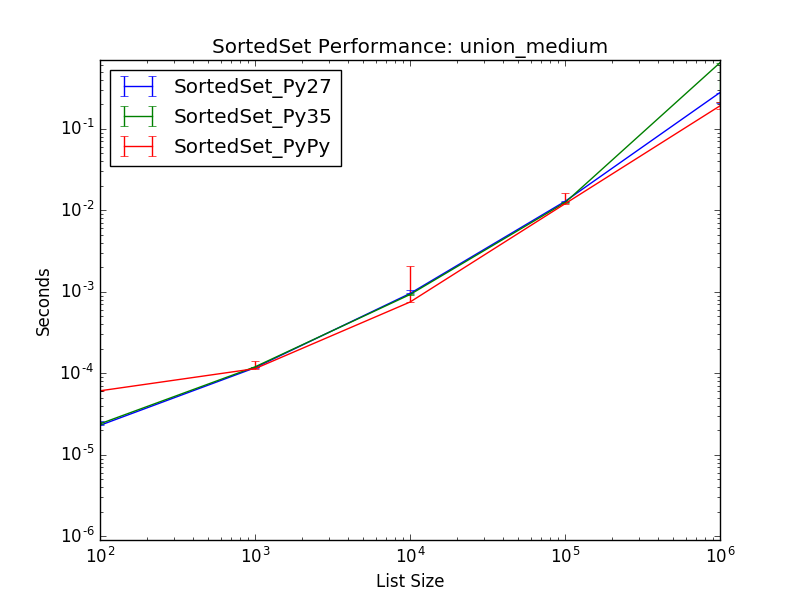

union_medium

Set union using :ref:`SortedSet.union<SortedSet.union>`.

_static/SortedSet_runtime-union_medium.png

union_small

Set union using :ref:`SortedSet.union<SortedSet.union>`.

_static/SortedSet_runtime-union_small.png

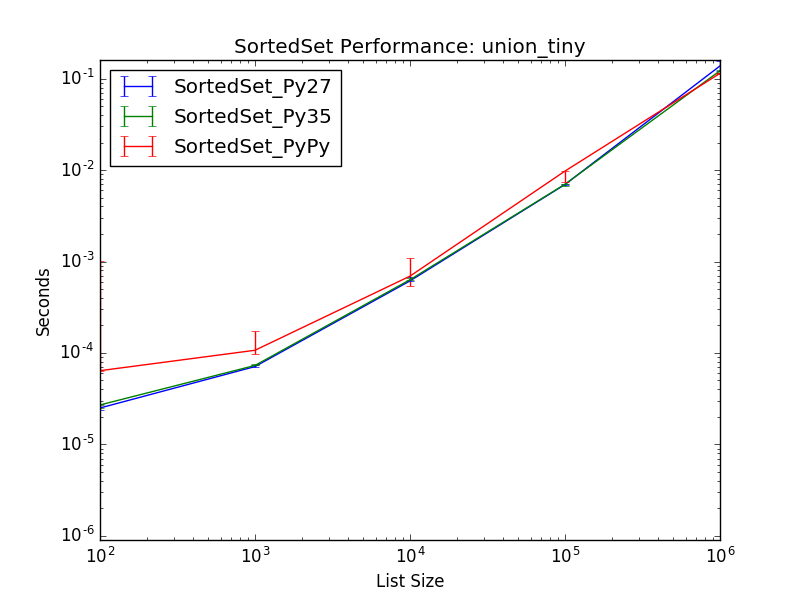

union_tiny

Set union using :ref:`SortedSet.union<SortedSet.union>`.

_static/SortedSet_runtime-union_tiny.png

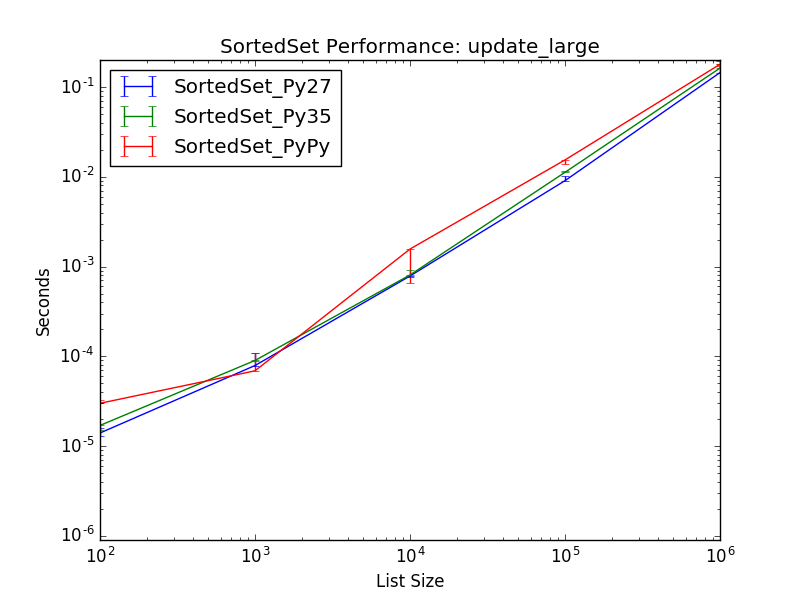

update_large

Set update using :ref:`SortedSet.update<SortedSet.update>`.

_static/SortedSet_runtime-update_large.png

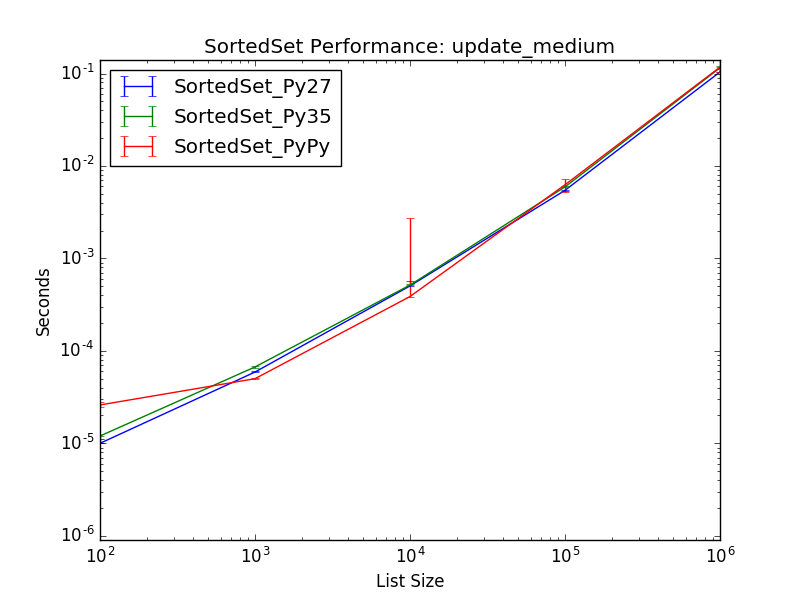

update_medium

Set update using :ref:`SortedSet.update<SortedSet.update>`.

_static/SortedSet_runtime-update_medium.png

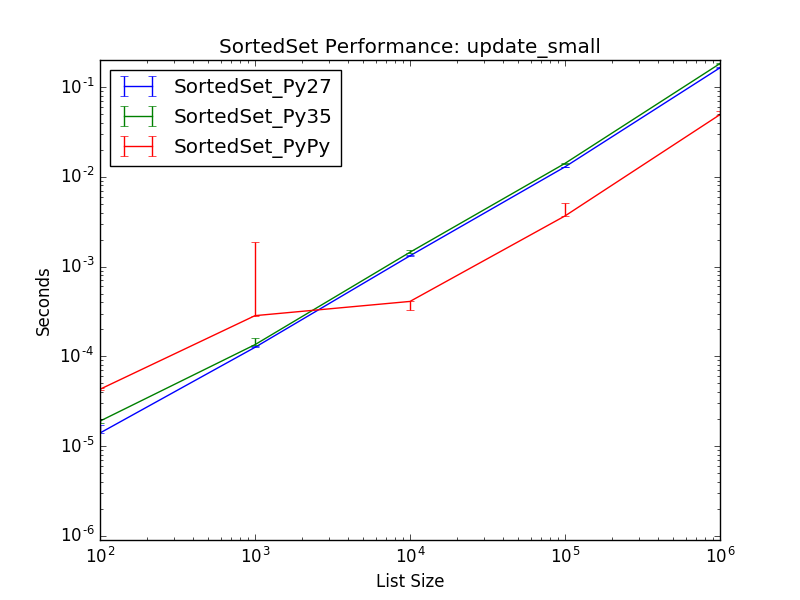

update_small

Set update using :ref:`SortedSet.update<SortedSet.update>`.

_static/SortedSet_runtime-update_small.png

update_tiny

Set update using :ref:`SortedSet.update<SortedSet.update>`.

_static/SortedSet_runtime-update_tiny.png

symmetric_difference_large

Set symmetric-difference using :ref:`SortedSet.symmetric_difference<SortedSet.symmetric_difference>`.

_static/SortedSet_runtime-symmetric_difference_large.png

symmetric_difference_medium

Set symmetric-difference using :ref:`SortedSet.symmetric_difference<SortedSet.symmetric_difference>`.

_static/SortedSet_runtime-symmetric_difference_medium.png

symmetric_difference_small

Set symmetric-difference using :ref:`SortedSet.symmetric_difference<SortedSet.symmetric_difference>`.

_static/SortedSet_runtime-symmetric_difference_small.png

symmetric_difference_tiny

Set symmetric-difference using :ref:`SortedSet.symmetric_difference<SortedSet.symmetric_difference>`.

_static/SortedSet_runtime-symmetric_difference_tiny.png

symm_diff_update_large

Set symmetric-difference using :ref:`SortedSet.symmetric_difference_update<SortedSet.symmetric_difference_update>`.

_static/SortedSet_runtime-symmetric_difference_update_large.png

symm_diff_update_medium

Set symmetric-difference using :ref:`SortedSet.symmetric_difference_update<SortedSet.symmetric_difference_update>`.

_static/SortedSet_runtime-symmetric_difference_update_medium.png

symm_diff_update_small

Set symmetric-difference using :ref:`SortedSet.symmetric_difference_update<SortedSet.symmetric_difference_update>`.

_static/SortedSet_runtime-symmetric_difference_update_small.png

symm_diff_update_tiny

Set symmetric-difference using :ref:`SortedSet.symmetric_difference_update<SortedSet.symmetric_difference_update>`.

_static/SortedSet_runtime-symmetric_difference_update_tiny.png
